第28关 Prometheus监控

𝒊𝒄𝒖𝒓𝒗𝒆𝒔𝒕𝒂𝒓大约 41 分钟KubernetesKubernetesPrometheusoperatorAlertmanager监控

(一) Prometheus介绍

对于运维开发人员来说，不管是哪个平台服务，监控都是非常关键重要的。

在传统服务（固定网络或服务器）里面，我们通常会到zabbix、open-falcon、netdata来做服务的监控，但对于目前主流的K8s平台（pod名称随机、ip随机）来说，由于服务pod会被调度到任何机器上运行，且pod挂掉后会被自动重启，并且我们也需要有更好的自动服务发现功能来实现服务报警的自动接入，实现更高效的运维报警，这里我们需要用到K8s的监控实现Prometheus（云原生首选）（Go语言、二进制文件），它是基于Google内部监控系统的开源实现。

参加面试的话监控必不可少，会针对公司现有现有的监控体系来问你。有没有用过、怎么监控的、监控什么维度。了解监控软件的架构，怎么使用更好的监控规则配置。针对监控软件做二次开发更好的符合公司特性。

zabbix（大部分、主流）架构原因，机器多的时候有性能问题

open-falcon（小米开源，但不怎么更新了，替代品是夜莺，原班人马开发）

netdata（秒级）

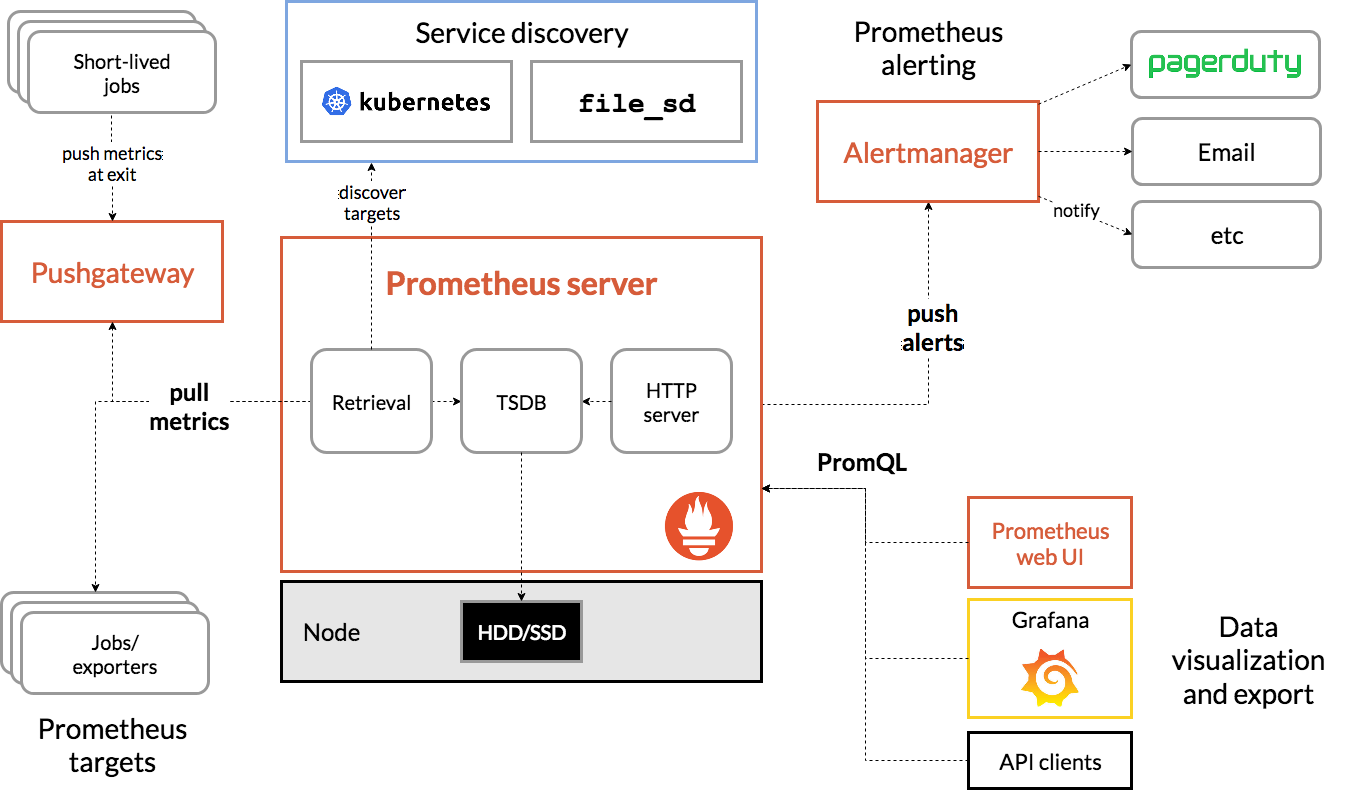

Prometheus架构图

在这里插入图片描述

TSDB 数据存储 可以看文档

Pushgateway：边缘节点网络不好可以设置一个gateway网关，比如一个北京一个北美，可以在香港设置一个网关

Alertmannager：告警模块 钉钉、企业微信 Webhook形式报警推送信息

Prometheus是由golang语言编写，这样它的部署实际上是比较简单的，就一个服务的二进制包加上对应的配置文件即可运行，然而这种方式的部署过程繁琐并且效率低下，我们这里就不以这种传统的形式来部署Prometheus来实现K8s集群的监控了，而是会用到Prometheus-Operator来进行Prometheus监控服务的安装，这也是我们生产中常用的安装方式。

从本质上来讲Prometheus属于是典型的有状态应用，而其有包含了一些自身特有的运维管理和配置管理方式。而这些都无法通过Kubernetes原生提供的应用管理概念实现自动化。为了简化这类应用程序的管理复杂度，CoreOS率先引入了Operator的概念，并且首先推出了针对在Kubernetes下运行和管理Etcd的Etcd Operator。并随后推出了Prometheus Operator。

Prometheus Operator的工作原理

从概念上来讲Operator就是针对管理特定应用程序的，在Kubernetes基本的Resource和Controller的概念上，以扩展Kubernetes api的形式。帮助用户创建，配置和管理复杂的有状态应用程序。从而实现特定应用程序的常见操作以及运维自动化。

在Kubernetes中我们使用Deployment、DamenSet，StatefulSet来管理应用Workload，使用Service，Ingress来管理应用的访问方式，使用ConfigMap和Secret来管理应用配置。我们在集群中对这些资源的创建，更新，删除的动作都会被转换为事件(Event)，Kubernetes的Controller Manager负责监听这些事件并触发相应的任务来满足用户的期望。这种方式我们成为声明式，用户只需要关心应用程序的最终状态，其它的都通过Kubernetes来帮助我们完成，通过这种方式可以大大简化应用的配置管理复杂度。

而除了这些原生的Resource资源以外，Kubernetes还允许用户添加自己的自定义资源(Custom Resource)。并且通过实现自定义Controller来实现对Kubernetes的扩展。

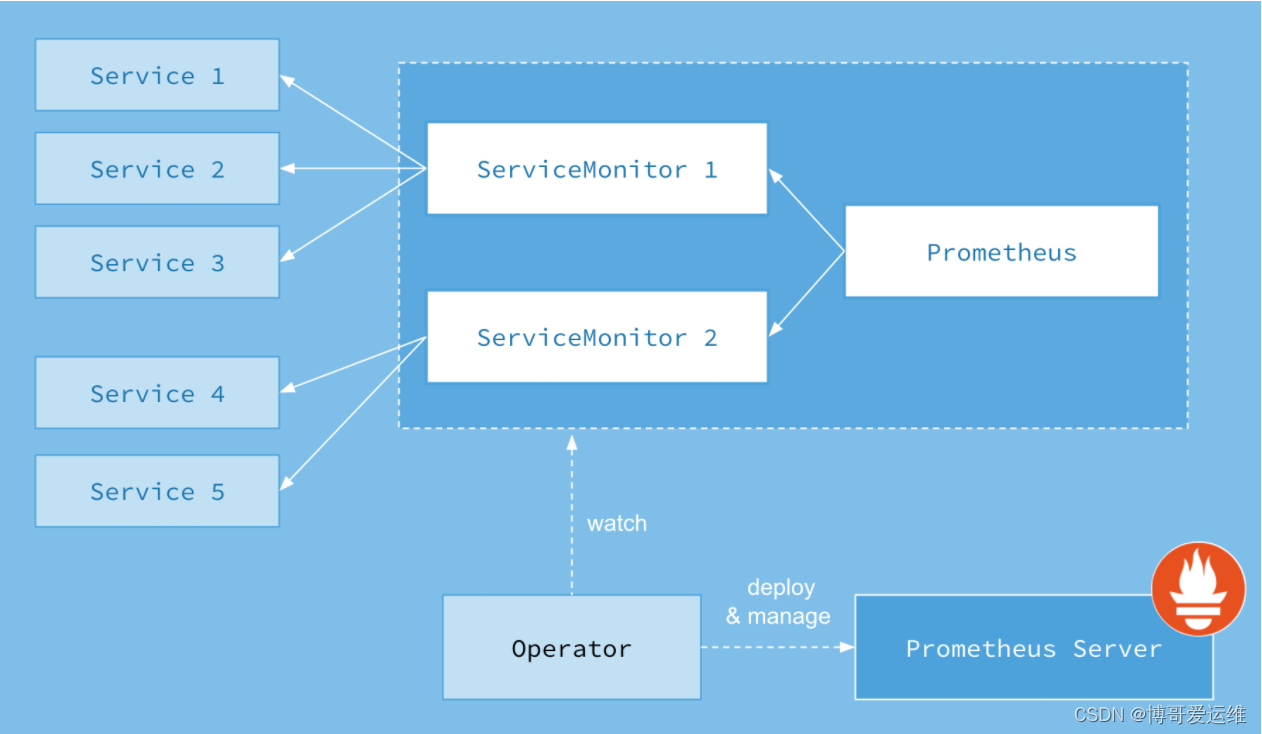

如下所示，是Prometheus Operator的架构示意图：

在这里插入图片描述

Prometheus的本职就是一组用户自定义的CRD资源以及Controller的实现，Prometheus Operator负责监听这些自定义资源的变化，并且根据这些资源的定义自动化的完成如Prometheus Server自身以及配置的自动化管理工作。

Prometheus Operator能做什么

要了解Prometheus Operator能做什么，其实就是要了解Prometheus Operator为我们提供了哪些自定义的Kubernetes资源，列出了Prometheus Operator目前提供的️4类资源：

  • Prometheus：声明式创建和管理Prometheus Server实例；
  • ServiceMonitor：负责声明式的管理监控配置；
  • PrometheusRule：负责声明式的管理告警配置；
  • Alertmanager：声明式的创建和管理Alertmanager实例。

简言之，Prometheus Operator能够帮助用户自动化的创建以及管理Prometheus Server以及其相应的配置。

(二) operator安装

用prometheus-operator来安装整套prometheus服务

https://github.com/prometheus-operator/kube-prometheus/releases

下载

1. 解压下载的代码包
wget https://github.com/prometheus-operator/kube-prometheus/archive/refs/tags/v0.13.0.zip
unzip kube-prometheus-0.13.0.zip
rm -f kube-prometheus-0.13.0.zip && cd kube-prometheus-0.13.0

2. 这里先看下有哪些镜像
# find ./ -type f |xargs egrep 'image: quay.io|image: registry.k8s.io|image: grafana|image: docker.io'|awk '{print $3}'|sort|uniq

quay.io/prometheus-operator/prometheus-config-reloader:v0.67.1  # 注意：这个镜像配置比较特殊，上面命令过滤不出来

grafana/grafana:9.5.3
docker.io/cloudnativelabs/kube-router
quay.io/brancz/kube-rbac-proxy:v0.14.2
quay.io/fabxc/prometheus_demo_service
quay.io/prometheus/alertmanager:v0.26.0
quay.io/prometheus/blackbox-exporter:v0.24.0
quay.io/prometheus/node-exporter:v1.6.1
quay.io/prometheus-operator/prometheus-operator:v0.67.1
quay.io/prometheus/prometheus:v2.46.0
registry.k8s.io/kube-state-metrics/kube-state-metrics:v2.9.2
registry.k8s.io/prometheus-adapter/prometheus-adapter:v0.11.1 # 这两个直接卡住

# 由于上面的镜像中，有部分国内网络无法正常摘取，所以博哥将上述所有镜像已转存至docker hub上，用下面命令批量替换下镜像地址即可

find ./ -type f |xargs  sed -ri 's+quay.io/.*/+docker.io/bogeit/+g'
find ./ -type f |xargs  sed -ri 's+docker.io/cloudnativelabs/+docker.io/bogeit/+g'
find ./ -type f |xargs  sed -ri 's+grafana/+docker.io/bogeit/+g'
find ./ -type f |xargs  sed -ri 's+registry.k8s.io/.*/+docker.io/bogeit/+g'

修改镜像

理论上quay.io等已经配置镜像源，应该不会拉取不到，尝试推送到自建harbor

搜索镜像

博哥：

2. 这里先看下有哪些镜像
# cd kube-prometheus-0.13.0
# find ./ -type f |xargs egrep 'image: quay.io|image: registry.k8s.io|image: grafana|image: docker.io'|awk '{print $3}'|sort|uniq

grafana/grafana:9.5.3
docker.io/cloudnativelabs/kube-router
quay.io/brancz/kube-rbac-proxy:v0.14.2
quay.io/fabxc/prometheus_demo_service
quay.io/prometheus/alertmanager:v0.26.0
quay.io/prometheus/blackbox-exporter:v0.24.0
quay.io/prometheus/node-exporter:v1.6.1
quay.io/prometheus-operator/prometheus-operator:v0.67.1
quay.io/prometheus/prometheus:v2.46.0
registry.k8s.io/kube-state-metrics/kube-state-metrics:v2.9.2
registry.k8s.io/prometheus-adapter/prometheus-adapter:v0.11.1 # 这两个直接卡住
quay.io/prometheus-operator/prometheus-config-reloader:v0.67.1  # 注意：这个镜像配置比较特殊，上面命令过滤不出来



# 由于上面的镜像中，有部分国内网络无法正常摘取，所以博哥将上述所有镜像已转存至docker hub上，用下面命令批量替换下镜像地址即可

find ./ -type f |xargs  sed -ri 's+quay.io/.*/+docker.io/bogeit/+g'
find ./ -type f |xargs  sed -ri 's+docker.io/cloudnativelabs/+docker.io/bogeit/+g'
find ./ -type f |xargs  sed -ri 's+grafana/+docker.io/bogeit/+g'
find ./ -type f |xargs  sed -ri 's+registry.k8s.io/.*/+docker.io/bogeit/+g'

暴力

修改后

# find ./ -type f |xargs egrep -n 'docker.io/bogeit'|sort
./docs/blackbox-exporter.md:31:* `_config.imageRepos.blackboxExporter`: the name of the blackbox exporter image to deploy. Defaults to `docker.io/bogeit/blackbox-exporter`.
./docs/community-support.md:63:For documentation, check the [Grafana docs](https://grafana.com/docs/docker.io/bogeit/latest/).
./docs/community-support.md:67:For bugs, use the GitHub [issue tracker](https://github.com/docker.io/bogeit/docker.io/bogeit/issues/new/choose).
./docs/customizations/developing-prometheus-rules-and-grafana-dashboards.md:356:We recommend using the [grafonnet](https://github.com/docker.io/bogeit/grafonnet-lib/) library for jsonnet,
./docs/customizations/using-custom-container-registry.md:12:$ docker pull docker.io/bogeit/alertmanager:v0.16.2
./docs/customizations/using-custom-container-registry.md:13:$ docker tag docker.io/bogeit/alertmanager:v0.16.2
./docs/kube-prometheus-on-kubeadm.md:119:kubectl --namespace="$NAMESPACE" apply -f manifests/docker.io/bogeit/grafana-credentials.yaml
./docs/weave-net-support.md:14:4. [Grafana Dashboard for Weave Net](https://grafana.com/docker.io/bogeit/dashboards/11789) This will setup the per Weave Net pod level monitoring for Weave Net.
./docs/weave-net-support.md:15:5. [Grafana Dashboard for Weave Net(Cluster)](https://grafana.com/docker.io/bogeit/dashboards/11804) This will setup the cluster level monitoring for Weave Net.
./examples/example-app/example-app.yaml:36:        image: docker.io/bogeit/prometheus_demo_service
./examples/grafana-ldap.jsonnet:13:              config_file: '/etc/docker.io/bogeit/ldap.toml',
./examples/prometheus-thanos.jsonnet:18:          baseImage: 'docker.io/bogeit/thanos',
./examples/thanos-sidecar.jsonnet:11:          image: 'docker.io/bogeit/thanos:v0.19.0',
./.github/workflows/kind/kube-router.yaml:50:          image: docker.io/bogeit/kube-router
./.github/workflows/kind/kube-router.yaml:89:          image: docker.io/bogeit/kube-router
./jsonnetfile.lock.json:27:          "remote": "https://github.com/docker.io/bogeit/grafana.git",
./jsonnetfile.lock.json:37:          "remote": "https://github.com/docker.io/bogeit/grafonnet-lib.git",
./jsonnetfile.lock.json:47:          "remote": "https://github.com/docker.io/bogeit/grafonnet-lib.git",
./jsonnetfile.lock.json:57:          "remote": "https://github.com/docker.io/bogeit/jsonnet-libs.git",
./jsonnet/kube-prometheus/addons/config-mixins.libsonnet:18:// docker.io/bogeit/addon-resizer
./jsonnet/kube-prometheus/addons/config-mixins.libsonnet:19:// docker.io/bogeit/grafana -> grafana $repository/grafana
./jsonnet/kube-prometheus/components/grafana.libsonnet:1:local kubernetesGrafana = import 'github.com/brancz/kubernetes-docker.io/bogeit/docker.io/bogeit/grafana.libsonnet';
./jsonnet/kube-prometheus/components/grafana.libsonnet:30:      runbookURLPattern: 'https://runbooks.prometheus-operator.dev/runbooks/docker.io/bogeit/%s',
./jsonnet/kube-prometheus/components/grafana.libsonnet:50:      (import 'github.com/docker.io/bogeit/docker.io/bogeit/grafana-mixin/mixin.libsonnet') +
./jsonnet/kube-prometheus/jsonnetfile.json:16:          "remote": "https://github.com/docker.io/bogeit/grafana",
./jsonnet/kube-prometheus/main.libsonnet:40:        alertmanager: 'docker.io/bogeit/alertmanager:v' + $.values.common.versions.alertmanager,
./jsonnet/kube-prometheus/main.libsonnet:41:        blackboxExporter: 'docker.io/bogeit/blackbox-exporter:v' + $.values.common.versions.blackboxExporter,
./jsonnet/kube-prometheus/main.libsonnet:42:        grafana: 'docker.io/bogeit/grafana:' + $.values.common.versions.grafana,
./jsonnet/kube-prometheus/main.libsonnet:43:        kubeStateMetrics: 'docker.io/bogeit/kube-state-metrics:v' + $.values.common.versions.kubeStateMetrics,
./jsonnet/kube-prometheus/main.libsonnet:44:        nodeExporter: 'docker.io/bogeit/node-exporter:v' + $.values.common.versions.nodeExporter,
./jsonnet/kube-prometheus/main.libsonnet:45:        prometheus: 'docker.io/bogeit/prometheus:v' + $.values.common.versions.prometheus,
./jsonnet/kube-prometheus/main.libsonnet:46:        prometheusAdapter: 'docker.io/bogeit/prometheus-adapter:v' + $.values.common.versions.prometheusAdapter,
./jsonnet/kube-prometheus/main.libsonnet:47:        prometheusOperator: 'docker.io/bogeit/prometheus-operator:v' + $.values.common.versions.prometheusOperator,
./jsonnet/kube-prometheus/main.libsonnet:48:        prometheusOperatorReloader: 'docker.io/bogeit/prometheus-config-reloader:v' + $.values.common.versions.prometheusOperator,
./jsonnet/kube-prometheus/main.libsonnet:49:        kubeRbacProxy: 'docker.io/bogeit/kube-rbac-proxy:v' + $.values.common.versions.kubeRbacProxy,
./manifests/alertmanager-alertmanager.yaml:13:  image: docker.io/bogeit/alertmanager:v0.26.0
./manifests/blackboxExporter-deployment.yaml:33:        image: docker.io/bogeit/blackbox-exporter:v0.24.0
./manifests/blackboxExporter-deployment.yaml:87:        image: docker.io/bogeit/kube-rbac-proxy:v0.14.2
./manifests/grafana-deployment.yaml:33:        image: docker.io/bogeit/grafana:9.5.3
./manifests/grafana-deployment.yaml:61:        - mountPath: /etc/docker.io/bogeit/provisioning/datasources
./manifests/grafana-deployment.yaml:64:        - mountPath: /etc/docker.io/bogeit/provisioning/dashboards
./manifests/grafana-prometheusRule.yaml:20:        runbook_url: https://runbooks.prometheus-operator.dev/runbooks/docker.io/bogeit/grafanarequestsfailing
./manifests/kubeStateMetrics-deployment.yaml:35:        image: docker.io/bogeit/kube-state-metrics:v2.9.2
./manifests/kubeStateMetrics-deployment.yaml:58:        image: docker.io/bogeit/kube-rbac-proxy:v0.14.2
./manifests/kubeStateMetrics-deployment.yaml:83:        image: docker.io/bogeit/kube-rbac-proxy:v0.14.2
./manifests/nodeExporter-daemonset.yaml:40:        image: docker.io/bogeit/node-exporter:v1.6.1
./manifests/nodeExporter-daemonset.yaml:75:        image: docker.io/bogeit/kube-rbac-proxy:v0.14.2
./manifests/prometheusAdapter-deployment.yaml:41:        image: docker.io/bogeit/prometheus-adapter:v0.11.1
./manifests/prometheusOperator-deployment.yaml:32:        - --prometheus-config-reloader=docker.io/bogeit/prometheus-config-reloader:v0.67.1
./manifests/prometheusOperator-deployment.yaml:33:        image: docker.io/bogeit/prometheus-operator:v0.67.1
./manifests/prometheusOperator-deployment.yaml:55:        image: docker.io/bogeit/kube-rbac-proxy:v0.14.2
./manifests/prometheus-prometheus.yaml:21:  image: docker.io/bogeit/prometheus:v2.46.0
./scripts/generate-versions.sh:61:  "grafana": "$(get_version "docker.io/bogeit/grafana")",
./scripts/get-new-changelogs.sh:30:        get_changelog_url "docker.io/bogeit/grafana" "${version}"
2. 这里先看下有哪些镜像
# cd kube-prometheus-0.13.0
# find ./ -type f |xargs egrep 'image: quay.io|image: registry.k8s.io|image: grafana|image: docker.io'|awk '{print $3}'|sort|uniq

grafana/grafana:9.5.3
docker.io/cloudnativelabs/kube-router
quay.io/brancz/kube-rbac-proxy:v0.14.2
quay.io/fabxc/prometheus_demo_service
quay.io/prometheus/alertmanager:v0.26.0
quay.io/prometheus/blackbox-exporter:v0.24.0
quay.io/prometheus/node-exporter:v1.6.1
quay.io/prometheus-operator/prometheus-operator:v0.67.1
quay.io/prometheus/prometheus:v2.46.0
registry.k8s.io/kube-state-metrics/kube-state-metrics:v2.9.2
registry.k8s.io/prometheus-adapter/prometheus-adapter:v0.11.1 # 这两个直接卡住
quay.io/prometheus-operator/prometheus-config-reloader:v0.67.1  # 注意：这个镜像配置比较特殊，上面命令过滤不出来
使用镜像quay.io/prometheus-operator/prometheus-config-reloader:v0.67.1作为Prometheus配置的重载器


# find ./ -type f |xargs egrep -n 'image: quay.io|image: registry.k8s.io|image: grafana|image: docker.io'|sort
./examples/example-app/example-app.yaml:36:        image: quay.io/fabxc/prometheus_demo_service
./.github/workflows/kind/kube-router.yaml:50:          image: docker.io/cloudnativelabs/kube-router
./.github/workflows/kind/kube-router.yaml:89:          image: docker.io/cloudnativelabs/kube-router
./manifests/alertmanager-alertmanager.yaml:13:  image: quay.io/prometheus/alertmanager:v0.26.0
./manifests/blackboxExporter-deployment.yaml:33:        image: quay.io/prometheus/blackbox-exporter:v0.24.0
./manifests/blackboxExporter-deployment.yaml:87:        image: quay.io/brancz/kube-rbac-proxy:v0.14.2
./manifests/grafana-deployment.yaml:33:        image: grafana/grafana:9.5.3
./manifests/kubeStateMetrics-deployment.yaml:35:        image: registry.k8s.io/kube-state-metrics/kube-state-metrics:v2.9.2
./manifests/kubeStateMetrics-deployment.yaml:58:        image: quay.io/brancz/kube-rbac-proxy:v0.14.2
./manifests/kubeStateMetrics-deployment.yaml:83:        image: quay.io/brancz/kube-rbac-proxy:v0.14.2
./manifests/nodeExporter-daemonset.yaml:40:        image: quay.io/prometheus/node-exporter:v1.6.1
./manifests/nodeExporter-daemonset.yaml:75:        image: quay.io/brancz/kube-rbac-proxy:v0.14.2
./manifests/prometheusAdapter-deployment.yaml:41:        image: registry.k8s.io/prometheus-adapter/prometheus-adapter:v0.11.1
./manifests/prometheusOperator-deployment.yaml:33:        image: quay.io/prometheus-operator/prometheus-operator:v0.67.1
./manifests/prometheusOperator-deployment.yaml:55:        image: quay.io/brancz/kube-rbac-proxy:v0.14.2
./manifests/prometheus-prometheus.yaml:21:  image: quay.io/prometheus/prometheus:v2.46.0





find ./ -type f |xargs egrep -n 'prometheus-config-reloader'|sort
./manifests/prometheusOperator-deployment.yaml:32:        - --prometheus-config-reloader=quay.io/prometheus-operator/prometheus-config-reloader:v0.67.1
find ./ -type f |xargs egrep -n 'docker.io/bogeit'|sort



find ./ -type f |xargs egrep 'image: quay.io'|sort|uniq

find ./ -type f |xargs egrep 'quay.io/prometheus-operator/prometheus-config-reloader:v0.67.1'
使用镜像quay.io/prometheus-operator/prometheus-config-reloader:v0.67.1作为Prometheus配置的重载器

# 由于上面的镜像中，有部分国内网络无法正常摘取，所以博哥将上述所有镜像已转存至docker hub上，用下面命令批量替换下镜像地址即可

find ./ -type f |xargs  sed -ri 's+quay.io/.*/+docker.io/bogeit/+g'
find ./ -type f |xargs  sed -ri 's+docker.io/cloudnativelabs/+docker.io/bogeit/+g'
find ./ -type f |xargs  sed -ri 's+grafana/+docker.io/bogeit/+g'
find ./ -type f |xargs  sed -ri 's+registry.k8s.io/.*/+docker.io/bogeit/+g'

# find ./ -type f |xargs egrep 'bogeit'|awk '{print $3}'|sort|uniq

# find ./ -type f |xargs egrep 'bogeit'|sort|uniq


find ./ -type f |xargs egrep -n 'jimmidyson/configmap-reload'|sort

find ./ -type f |xargs egrep -n 'image: '|sort

find ./ -type f |xargs egrep -n 'easzlab.io.local:5000'|sort

image: jimmidyson/configmap-reload:v0.5.0

要修改的地方

./jsonnet/kube-prometheus/main.libsonnet:42:

./manifests/alertmanager-alertmanager.yaml:13
./manifests/blackboxExporter-deployment.yaml:33:
./manifests/blackboxExporter-deployment.yaml:87:
./manifests/grafana-deployment.yaml:33:
./manifests/kubeStateMetrics-deployment.yaml:35:
./manifests/nodeExporter-daemonset.yaml:40:
./manifests/prometheusAdapter-deployment.yaml:41:

针对处理

1. 把image: quay.io、image: docker.io、image: registry.k8s.io 带有image:统一换成
image: easzlab.io.local:5000

find ./ -type f -exec sed -i 's+image: quay.io/+image: easzlab.io.local:5000/+g' {} +
find ./ -type f -exec sed -i 's+image: docker.io/+image: easzlab.io.local:5000/+g' {} +
find ./ -type f -exec sed -i 's+image: registry.k8s.io/+image: easzlab.io.local:5000/+g' {} +

2.修改grafana镜像地址
./manifests/grafana-deployment.yaml:33:        image: grafana/grafana:9.5.3
image: easzlab.io.local:5000/grafana/grafana:9.5.3

3../jsonnet/kube-prometheus/main.libsonnet:40:的镜像地址
images: {
        alertmanager: 'quay.io/prometheus/alertmanager:v' + $.values.common.versions.alertmanager,
        blackboxExporter: 'quay.io/prometheus/blackbox-exporter:v' + $.values.common.versions.blackboxExporter,
        grafana: 'grafana/grafana:' + $.values.common.versions.grafana,
        kubeStateMetrics: 'registry.k8s.io/kube-state-metrics/kube-state-metrics:v' + $.values.common.versions.kubeStateMetrics,
        nodeExporter: 'quay.io/prometheus/node-exporter:v' + $.values.common.versions.nodeExporter,
        prometheus: 'quay.io/prometheus/prometheus:v' + $.values.common.versions.prometheus,
        prometheusAdapter: 'registry.k8s.io/prometheus-adapter/prometheus-adapter:v' + $.values.common.versions.prometheusAdapter,
        prometheusOperator: 'quay.io/prometheus-operator/prometheus-operator:v' + $.values.common.versions.prometheusOperator,
        prometheusOperatorReloader: 'quay.io/prometheus-operator/prometheus-config-reloader:v' + $.values.common.versions.prometheusOperator,
        kubeRbacProxy: 'quay.io/brancz/kube-rbac-proxy:v' + $.values.common.versions.kubeRbacProxy,
        configmapReload: 'jimmidyson/
        configmap-reload:v' + $.values.common.versions.configmapReload,
      }
11个

./manifests/blackboxExporter-deployment.yaml:60:        image: jimmidyson/configmap-reload:v0.5.0

jimmidyson/configmap-reload:v0.5.0 没见过
也是单独修改

还涉及到
./jsonnet/kube-prometheus/addons/ksm-autoscaler.libsonnet:5:      image: 'gcr.io/google_containers/cpvpa-amd64:v0.8.1',



4.examples里的镜像
./examples/prometheus-thanos.jsonnet:18:    baseImage: 'docker.io/bogeit/thanos',（version: 'v0.8.1',）
./examples/thanos-sidecar.jsonnet:11:    image: 'docker.io/bogeit/thanos:v0.19.0',

并没有docker.io/bogeit/thanos:v0.19.0
原文：
thanos: {
          version: '0.19.0',
          image: 'quay.io/thanos/thanos:v0.19.0',
thanos: {
          baseImage: 'quay.io/thanos/thanos',
          version: 'v0.8.1',


还涉及到了

./examples/example-app/example-app.yaml:36:        image: quay.io/fabxc/prometheus_demo_service
./examples/thanos-sidecar.jsonnet:11:          image: 'quay.io/thanos/thanos:v0.19.0',
./examples/windows-hostprocess.jsonnet:10:        image: 'ghcr.io/prometheus-community/windows-exporter',
./experimental/metrics-server/metrics-server-deployment.yaml:21:        image: gcr.io/google_containers/metrics-server-amd64:v0.2.0


5.prometheus-config-reloader
./manifests/prometheusOperator-deployment.yaml:32:        - --prometheus-config-reloader=quay.io/prometheus-operator/prometheus-config-reloader:v0.67.1


下面两个已在1.那个更改
./.github/workflows/kind/kube-router.yaml:50:          image: docker.io/bogeit/kube-router
./.github/workflows/kind/kube-router.yaml:89:          image: docker.io/bogeit/kube-router



可疑：
1.这两行是注释
./jsonnet/kube-prometheus/addons/config-mixins.libsonnet:18:// docker.io/bogeit/addon-resizer
./jsonnet/kube-prometheus/addons/config-mixins.libsonnet:19:// docker.io/bogeit/grafana -> grafana $repository/grafana

2.runbooks.prometheus-operator.dev这是一个能打开的网址，不是svc
./jsonnet/kube-prometheus/components/grafana.libsonnet:30:      runbookURLPattern: 'https://runbooks.prometheus-operator.dev/runbooks/docker.io/bogeit/%s',

3.把挂载路径都改了
./manifests/grafana-deployment.yaml:61:        - mountPath: /etc/docker.io/bogeit/provisioning/datasources
./manifests/grafana-deployment.yaml:64:        - mountPath: /etc/docker.io/bogeit/provisioning/dashboards


4.scripts脚本
./scripts/generate-versions.sh:61:  "grafana": "$(get_version "docker.io/bogeit/grafana")",
./scripts/get-new-changelogs.sh:30:        get_changelog_url "docker.io/bogeit/grafana" "${version}"

原文：
generate-versions.sh:
cat <<-EOF
{
  "alertmanager": "$(get_version "prometheus/alertmanager")",
  "blackboxExporter": "$(get_version "prometheus/blackbox_exporter")",
  "grafana": "$(get_version "grafana/grafana")",
  "kubeStateMetrics": "$(get_version "kubernetes/kube-state-metrics")",
  "nodeExporter": "$(get_version "prometheus/node_exporter")",
  "prometheus": "$(get_version "prometheus/prometheus")",
  "prometheusAdapter": "$(get_version "kubernetes-sigs/prometheus-adapter")",
  "prometheusOperator": "$(get_version "prometheus-operator/prometheus-operator")",
  "kubeRbacProxy": "$(get_version "brancz/kube-rbac-proxy")",
  "configmapReload": "$(get_version "jimmidyson/configmap-reload")",
  "pyrra": "$(get_version "pyrra-dev/pyrra")"
}
EOF

get-new-changelogs.sh
# Returns github changelog url based on a given repository url and tag.
get_changelog_url() {
  echo "https://github.com/${1}/releases/tag/v${2}"
}

# Gets all the new changelogs from the updated components version.
get_changelog_urls() {
  while IFS= read -r updated_version; do
    read -r component version <<< "${updated_version}"
    case "${component}" in
      alertmanager)
        get_changelog_url "prometheus/alertmanager" "${version}"
        ;;
      blackboxExporter)
        get_changelog_url "prometheus/blackbox_exporter" "${version}"
        ;;
      grafana)
        get_changelog_url "grafana/grafana" "${version}"
        ;;
images: {
        alertmanager: 'easzlab.io.local:5000/prometheus/alertmanager:v' + $.values.common.versions.alertmanager,
        blackboxExporter: 'easzlab.io.local:5000/prometheus/blackbox-exporter:v' + $.values.common.versions.blackboxExporter,
        grafana: 'easzlab.io.local:5000/grafana/grafana:' + $.values.common.versions.grafana,
        kubeStateMetrics: 'easzlab.io.local:5000/kube-state-metrics/kube-state-metrics:v' + $.values.common.versions.kubeStateMetrics,
        nodeExporter: 'easzlab.io.local:5000/prometheus/node-exporter:v' + $.values.common.versions.nodeExporter,
        prometheus: 'easzlab.io.local:5000/prometheus/prometheus:v' + $.values.common.versions.prometheus,
        prometheusAdapter: 'easzlab.io.local:5000/prometheus-adapter/prometheus-adapter:v' + $.values.common.versions.prometheusAdapter,
        prometheusOperator: 'easzlab.io.local:5000/prometheus-operator/prometheus-operator:v' + $.values.common.versions.prometheusOperator,
        prometheusOperatorReloader: 'easzlab.io.local:5000/prometheus-operator/prometheus-config-reloader:v' + $.values.common.versions.prometheusOperator,
        kubeRbacProxy: 'easzlab.io.local:5000/brancz/kube-rbac-proxy:v' + $.values.common.versions.kubeRbacProxy,
        configmapReload: 'easzlab.io.local:5000/jimmidyson/configmap-reload:v' + $.values.common.versions.configmapReload,
      }

修改后

find ./ -type f |xargs egrep -n 'image: '|sort

find ./ -type f |xargs egrep -n 'easzlab.io.local:5000'|sort

镜像汇总

grafana/grafana:9.5.3
docker.io/cloudnativelabs/kube-router
quay.io/brancz/kube-rbac-proxy:v0.14.2
quay.io/fabxc/prometheus_demo_service
quay.io/prometheus/alertmanager:v0.26.0
quay.io/prometheus/blackbox-exporter:v0.24.0
quay.io/prometheus/node-exporter:v1.6.1
quay.io/prometheus-operator/prometheus-operator:v0.67.1
quay.io/prometheus/prometheus:v2.46.0
registry.k8s.io/kube-state-metrics/kube-state-metrics:v2.9.2
registry.k8s.io/prometheus-adapter/prometheus-adapter:v0.11.1 # 这两个直接卡住
quay.io/prometheus-operator/prometheus-config-reloader:v0.67.1  # 注意：这个镜像配置比较特殊，上面命令过滤不出来

推送到Docker registry本地仓库

1
grafana/grafana:9.5.3
拉取
# docker pull grafana/grafana:9.5.3

保存本地
# docker save grafana/grafana:9.5.3 > grafana-grafana-9.5.3.tar

打标签
docker tag grafana/grafana:9.5.3 easzlab.io.local:5000/grafana/grafana:9.5.3

推送
docker push easzlab.io.local:5000/grafana/grafana:9.5.3
2
docker.io/cloudnativelabs/kube-router


拉取
# docker pull docker.io/cloudnativelabs/kube-router

保存本地
# docker save docker.io/cloudnativelabs/kube-router:latest > cloudnativelabs-kube-router-latest.tar

打标签
docker tag docker.io/cloudnativelabs/kube-router:latest easzlab.io.local:5000/cloudnativelabs/kube-router:latest

推送
docker push easzlab.io.local:5000/cloudnativelabs/kube-router:latest
3
quay.io/brancz/kube-rbac-proxy:v0.14.2

拉取
# docker pull quay.io/brancz/kube-rbac-proxy:v0.14.2

保存本地
# docker save quay.io/brancz/kube-rbac-proxy:v0.14.2 > brancz-kube-rbac-proxy-v0.14.2.tar

打标签
docker tag quay.io/brancz/kube-rbac-proxy:v0.14.2 easzlab.io.local:5000/brancz/kube-rbac-proxy:v0.14.2

推送
docker push easzlab.io.local:5000/brancz/kube-rbac-proxy:v0.14.2
4
quay.io/fabxc/prometheus_demo_service


拉取
# docker pull quay.io/fabxc/prometheus_demo_service

保存本地
# docker save quay.io/fabxc/prometheus_demo_service:latest > fabxc-prometheus_demo_service-latest.tar

打标签
docker tag quay.io/fabxc/prometheus_demo_service:latest easzlab.io.local:5000/fabxc/prometheus_demo_service:latest

推送
docker push easzlab.io.local:5000/fabxc/prometheus_demo_service:latest

5

quay.io/prometheus/alertmanager:v0.26.0

拉取
# docker pull quay.io/prometheus/alertmanager:v0.26.0

保存本地
# docker save quay.io/prometheus/alertmanager:v0.26.0 > prometheus-alertmanager-v0.26.0.tar

打标签
docker tag quay.io/prometheus/alertmanager:v0.26.0 easzlab.io.local:5000/prometheus/alertmanager:v0.26.0

推送
docker push easzlab.io.local:5000/prometheus/alertmanager:v0.26.0

6

quay.io/prometheus/blackbox-exporter:v0.24.0

拉取
# docker pull quay.io/prometheus/blackbox-exporter:v0.24.0

保存本地
# docker save quay.io/prometheus/blackbox-exporter:v0.24.0 > prometheus-blackbox-exporter-v0.24.0.tar

打标签
docker tag quay.io/prometheus/blackbox-exporter:v0.24.0 easzlab.io.local:5000/prometheus/blackbox-exporter:v0.24.0

推送
docker push easzlab.io.local:5000/prometheus/blackbox-exporter:v0.24.0
7
quay.io/prometheus/node-exporter:v1.6.1

拉取
# docker pull quay.io/prometheus/node-exporter:v1.6.1

保存本地
# docker save quay.io/prometheus/node-exporter:v1.6.1 > prometheus-node-exporter-v1.6.1.tar

打标签
docker tag quay.io/prometheus/node-exporter:v1.6.1 easzlab.io.local:5000/prometheus/node-exporter:v1.6.1

推送
docker push easzlab.io.local:5000/prometheus/node-exporter:v1.6.1
8
quay.io/prometheus-operator/prometheus-operator:v0.67.1


拉取
# docker pull quay.io/prometheus-operator/prometheus-operator:v0.67.1

保存本地
# docker save quay.io/prometheus-operator/prometheus-operator:v0.67.1 > prometheus-operator-prometheus-operator-v0.67.1.tar

打标签
docker tag quay.io/prometheus-operator/prometheus-operator:v0.67.1 easzlab.io.local:5000/prometheus-operator/prometheus-operator:v0.67.1

推送
docker push easzlab.io.local:5000/prometheus-operator/prometheus-operator:v0.67.1
9
quay.io/prometheus/prometheus:v2.46.0


拉取
# docker pull quay.io/prometheus/prometheus:v2.46.0

保存本地
# docker save quay.io/prometheus/prometheus:v2.46.0 > prometheus-prometheus-v2.46.0.tar

打标签
docker tag quay.io/prometheus/prometheus:v2.46.0 easzlab.io.local:5000/prometheus/prometheus:v2.46.0

推送
docker push easzlab.io.local:5000/grafana/grafana:9.5.3
10
registry.k8s.io/kube-state-metrics/kube-state-metrics:v2.9.2
registry.k8s.io/prometheus-adapter/prometheus-adapter:v0.11.1 # 这两个直接卡住

拉取
# docker pull registry.k8s.io/kube-state-metrics/kube-state-metrics:v2.9.2

保存本地
# docker save grafana/grafana:9.5.3 > grafana-grafana-9.5.3.tar

打标签
docker tag grafana/grafana:9.5.3 easzlab.io.local:5000/grafana/grafana:9.5.3

推送
docker push easzlab.io.local:5000/grafana/grafana:9.5.3
registry.k8s.io/kube-state-metrics/kube-state-metrics:v2.9.2


docker.io/bogeit/kube-state-metrics:v2.9.2




拉取
# docker pull docker.io/bogeit/kube-state-metrics:v2.9.2

保存本地
# docker save docker.io/bogeit/kube-state-metrics:v2.9.2 > kube-state-metrics-kube-state-metrics-v2.9.2.tar

打标签
docker tag docker.io/bogeit/kube-state-metrics:v2.9.2 easzlab.io.local:5000/kube-state-metrics/kube-state-metrics:v2.9.2

推送
docker push easzlab.io.local:5000/kube-state-metrics/kube-state-metrics:v2.9.2

11

registry.k8s.io/prometheus-adapter/prometheus-adapter:v0.11.1 # 这两个直接卡住
docker.io/bogeit/prometheus-adapter:v0.11.1


拉取
# docker pull docker.io/bogeit/prometheus-adapter:v0.11.1

保存本地
# docker save docker.io/bogeit/prometheus-adapter:v0.11.1 > prometheus-adapter-prometheus-adapter-v0.11.1.tar

打标签
docker tag docker.io/bogeit/prometheus-adapter:v0.11.1 easzlab.io.local:5000/prometheus-adapter/prometheus-adapter:v0.11.1

推送
docker push easzlab.io.local:5000/prometheus-adapter/prometheus-adapter:v0.11.1
12
quay.io/prometheus-operator/prometheus-config-reloader:v0.67.1
拉取
# docker pull quay.io/prometheus-operator/prometheus-config-reloader:v0.67.1

保存本地
# docker save quay.io/prometheus-operator/prometheus-config-reloader:v0.67.1 > prometheus-operator-prometheus-config-reloader-v0.67.1.tar

打标签
docker tag quay.io/prometheus-operator/prometheus-config-reloader:v0.67.1 easzlab.io.local:5000/prometheus-operator/prometheus-config-reloader:v0.67.1

推送
docker push easzlab.io.local:5000/prometheus-operator/prometheus-config-reloader:v0.67.1
13
jimmidyson/configmap-reload:v0.5.0

拉取
# docker pull jimmidyson/configmap-reload:v0.5.0

保存本地
# docker save jimmidyson/configmap-reload:v0.5.0 > jimmidyson-configmap-reload-v0.5.0.tar

打标签
docker tag jimmidyson/configmap-reload:v0.5.0 easzlab.io.local:5000/jimmidyson/configmap-reload:v0.5.0

推送
docker push easzlab.io.local:5000/jimmidyson/configmap-reload:v0.5.0

部署

3. 开始创建所有服务
# manifests/setup目录下有多个yaml配置文件
# kubectl create -f manifests/setup
customresourcedefinition.apiextensions.k8s.io/alertmanagerconfigs.monitoring.coreos.com created
customresourcedefinition.apiextensions.k8s.io/alertmanagers.monitoring.coreos.com created
customresourcedefinition.apiextensions.k8s.io/podmonitors.monitoring.coreos.com created
customresourcedefinition.apiextensions.k8s.io/probes.monitoring.coreos.com created
customresourcedefinition.apiextensions.k8s.io/prometheuses.monitoring.coreos.com created
customresourcedefinition.apiextensions.k8s.io/prometheusagents.monitoring.coreos.com created
customresourcedefinition.apiextensions.k8s.io/prometheusrules.monitoring.coreos.com created
customresourcedefinition.apiextensions.k8s.io/scrapeconfigs.monitoring.coreos.com created
customresourcedefinition.apiextensions.k8s.io/servicemonitors.monitoring.coreos.com created
customresourcedefinition.apiextensions.k8s.io/thanosrulers.monitoring.coreos.com created
namespace/monitoring created

# kubectl create -f manifests/
alertmanager.monitoring.coreos.com/main created
networkpolicy.networking.k8s.io/alertmanager-main created
poddisruptionbudget.policy/alertmanager-main created
prometheusrule.monitoring.coreos.com/alertmanager-main-rules created
secret/alertmanager-main created
service/alertmanager-main created
serviceaccount/alertmanager-main created
servicemonitor.monitoring.coreos.com/alertmanager-main created
clusterrole.rbac.authorization.k8s.io/blackbox-exporter created
clusterrolebinding.rbac.authorization.k8s.io/blackbox-exporter created
configmap/blackbox-exporter-configuration created
deployment.apps/blackbox-exporter created
networkpolicy.networking.k8s.io/blackbox-exporter created
service/blackbox-exporter created
serviceaccount/blackbox-exporter created
servicemonitor.monitoring.coreos.com/blackbox-exporter created
secret/grafana-config created
secret/grafana-datasources created
configmap/grafana-dashboard-alertmanager-overview created
configmap/grafana-dashboard-apiserver created
configmap/grafana-dashboard-cluster-total created
configmap/grafana-dashboard-controller-manager created
configmap/grafana-dashboard-grafana-overview created
configmap/grafana-dashboard-k8s-resources-cluster created
configmap/grafana-dashboard-k8s-resources-multicluster created
configmap/grafana-dashboard-k8s-resources-namespace created
configmap/grafana-dashboard-k8s-resources-node created
configmap/grafana-dashboard-k8s-resources-pod created
configmap/grafana-dashboard-k8s-resources-workload created
configmap/grafana-dashboard-k8s-resources-workloads-namespace created
configmap/grafana-dashboard-kubelet created
configmap/grafana-dashboard-namespace-by-pod created
configmap/grafana-dashboard-namespace-by-workload created
configmap/grafana-dashboard-node-cluster-rsrc-use created
configmap/grafana-dashboard-node-rsrc-use created
configmap/grafana-dashboard-nodes-darwin created
configmap/grafana-dashboard-nodes created
configmap/grafana-dashboard-persistentvolumesusage created
configmap/grafana-dashboard-pod-total created
configmap/grafana-dashboard-prometheus-remote-write created
configmap/grafana-dashboard-prometheus created
configmap/grafana-dashboard-proxy created
configmap/grafana-dashboard-scheduler created
configmap/grafana-dashboard-workload-total created
configmap/grafana-dashboards created
networkpolicy.networking.k8s.io/grafana created
prometheusrule.monitoring.coreos.com/grafana-rules created
service/grafana created
serviceaccount/grafana created
servicemonitor.monitoring.coreos.com/grafana created
prometheusrule.monitoring.coreos.com/kube-prometheus-rules created
clusterrole.rbac.authorization.k8s.io/kube-state-metrics created
clusterrolebinding.rbac.authorization.k8s.io/kube-state-metrics created
deployment.apps/kube-state-metrics created
networkpolicy.networking.k8s.io/kube-state-metrics created
prometheusrule.monitoring.coreos.com/kube-state-metrics-rules created
service/kube-state-metrics created
serviceaccount/kube-state-metrics created
servicemonitor.monitoring.coreos.com/kube-state-metrics created
prometheusrule.monitoring.coreos.com/kubernetes-monitoring-rules created
servicemonitor.monitoring.coreos.com/kube-apiserver created
servicemonitor.monitoring.coreos.com/coredns created
servicemonitor.monitoring.coreos.com/kube-controller-manager created
servicemonitor.monitoring.coreos.com/kube-scheduler created
servicemonitor.monitoring.coreos.com/kubelet created
clusterrole.rbac.authorization.k8s.io/node-exporter created
clusterrolebinding.rbac.authorization.k8s.io/node-exporter created
daemonset.apps/node-exporter created
networkpolicy.networking.k8s.io/node-exporter created
prometheusrule.monitoring.coreos.com/node-exporter-rules created
service/node-exporter created
serviceaccount/node-exporter created
servicemonitor.monitoring.coreos.com/node-exporter created
clusterrole.rbac.authorization.k8s.io/prometheus-k8s created
clusterrolebinding.rbac.authorization.k8s.io/prometheus-k8s created
networkpolicy.networking.k8s.io/prometheus-k8s created
poddisruptionbudget.policy/prometheus-k8s created
prometheus.monitoring.coreos.com/k8s created
prometheusrule.monitoring.coreos.com/prometheus-k8s-prometheus-rules created
rolebinding.rbac.authorization.k8s.io/prometheus-k8s-config created
rolebinding.rbac.authorization.k8s.io/prometheus-k8s created
rolebinding.rbac.authorization.k8s.io/prometheus-k8s created
rolebinding.rbac.authorization.k8s.io/prometheus-k8s created
role.rbac.authorization.k8s.io/prometheus-k8s-config created
role.rbac.authorization.k8s.io/prometheus-k8s created
role.rbac.authorization.k8s.io/prometheus-k8s created
role.rbac.authorization.k8s.io/prometheus-k8s created
service/prometheus-k8s created
serviceaccount/prometheus-k8s created
servicemonitor.monitoring.coreos.com/prometheus-k8s created
clusterrole.rbac.authorization.k8s.io/prometheus-adapter created
clusterrolebinding.rbac.authorization.k8s.io/prometheus-adapter created
clusterrolebinding.rbac.authorization.k8s.io/resource-metrics:system:auth-delegator created
clusterrole.rbac.authorization.k8s.io/resource-metrics-server-resources created
configmap/adapter-config created
deployment.apps/prometheus-adapter created
networkpolicy.networking.k8s.io/prometheus-adapter created
poddisruptionbudget.policy/prometheus-adapter created
rolebinding.rbac.authorization.k8s.io/resource-metrics-auth-reader created
service/prometheus-adapter created
serviceaccount/prometheus-adapter created
servicemonitor.monitoring.coreos.com/prometheus-adapter created
clusterrole.rbac.authorization.k8s.io/prometheus-operator created
clusterrolebinding.rbac.authorization.k8s.io/prometheus-operator created
deployment.apps/prometheus-operator created
networkpolicy.networking.k8s.io/prometheus-operator created
prometheusrule.monitoring.coreos.com/prometheus-operator-rules created
service/prometheus-operator created
serviceaccount/prometheus-operator created
servicemonitor.monitoring.coreos.com/prometheus-operator created
Error from server (AlreadyExists): error when creating "manifests/prometheusAdapter-apiService.yaml": apiservices.apiregistration.k8s.io "v1beta1.metrics.k8s.io" already exists
Error from server (AlreadyExists): error when creating "manifests/prometheusAdapter-clusterRoleAggregatedMetricsReader.yaml": clusterroles.rbac.authorization.k8s.io "system:aggregated-metrics-reader" already exists
error parsing manifests/grafana-deployment.yaml: error converting YAML to JSON: yaml: line 33: mapping values are not allowed in this context

# 最后一个报错不正常，博哥没有
error parsing manifests/grafana-deployment.yaml: error converting YAML to JSON: yaml: line 33: mapping values are not allowed in this context

这个错误信息表明在解析Grafana部署的YAML文件时出现了问题，具体是在将YAML转换为JSON的过程中。错误位置在第33行，并且错误原因是“mapping values are not allowed in this context”，这通常意味着在YAML文件的这一行或者附近存在语法问题。
多了个images:

会创建命名空间 monitoring

过一会查看创建结果：
kubectl -n monitoring get all
kubectl -n monitoring get pod -w

# 附：清空上面部署的prometheus所有服务：
kubectl delete --ignore-not-found=true -f manifests/ -f manifests/setup

报错

# kubectl -n monitoring get all
NAME                                       READY   STATUS             RESTARTS   AGE
pod/prometheus-k8s-0                       1/2     ImagePullBackOff   0          2m52s
pod/prometheus-k8s-1                       1/2     ImagePullBackOff   0          2m51s


# kubectl -n monitoring describe pod prometheus-k8s-0
Events:
  Type     Reason     Age                    From               Message
  ----     ------     ----                   ----               -------
  Normal   Scheduled  4m29s                  default-scheduler  Successfully assigned monitoring/prometheus-k8s-0 to 10.0.1.203
  Normal   Pulling    4m7s                   kubelet            Pulling image "easzlab.io.local:5000/prometheus-operator/prometheus-config-reloader:v0.67.1"
  Normal   Pulled     4m1s                   kubelet            Successfully pulled image "easzlab.io.local:5000/prometheus-operator/prometheus-config-reloader:v0.67.1" in 6.799295747s (6.799309593s including waiting)
  Normal   Created    4m                     kubelet            Created container init-config-reloader
  Normal   Started    4m                     kubelet            Started container init-config-reloader
  Normal   Created    3m44s                  kubelet            Created container config-reloader
  Normal   Pulled     3m44s                  kubelet            Container image "easzlab.io.local:5000/prometheus-operator/prometheus-config-reloader:v0.67.1" already present on machine
  Normal   Started    3m40s                  kubelet            Started container config-reloader
  Warning  Failed     3m1s (x3 over 3m44s)   kubelet            Failed to pull image "easzlab.io.local:5000/prometheus/prometheus:v2.46.0": rpc error: code = NotFound desc = failed to pull and unpack image "easzlab.io.local:5000/prometheus/prometheus:v2.46.0": failed to resolve reference "easzlab.io.local:5000/prometheus/prometheus:v2.46.0": easzlab.io.local:5000/prometheus/prometheus:v2.46.0: not found
  Warning  Failed     3m1s (x3 over 3m44s)   kubelet            Error: ErrImagePull
  Normal   BackOff    2m35s (x4 over 3m40s)  kubelet            Back-off pulling image "easzlab.io.local:5000/prometheus/prometheus:v2.46.0"
  Warning  Failed     2m35s (x4 over 3m40s)  kubelet            Error: ImagePullBackOff
  Normal   Pulling    2m20s (x4 over 3m44s)  kubelet            Pulling image "easzlab.io.local:5000/prometheus/prometheus:v2.46.0"


# docker images |grep prometheus/prometheus
easzlab.io.local:5000/prometheus/prometheus                            v2.46.0            3b907f5313b7   11 months ago   245MB
quay.io/prometheus/prometheus                                          v2.46.0            3b907f5313b7   11 months ago   245MB



docker images |grep easzlab.io.local:5000/prometheus/prometheus:v2.46.0

# curl -X GET http://easzlab.io.local:5000/v2/prometheus/prometheus/tags/list
{"name":"prometheus/prometheus","tags":["v2.46.0"]}


push

kubectl -n monitoring delete pod prometheus-k8s-0
kubectl -n monitoring delete pod prometheus-k8s-1

开始安装

3. 开始创建所有服务
# manifests/setup目录下有多个yaml配置文件
kubectl create -f manifests/setup
kubectl create -f manifests/
过一会查看创建结果：
kubectl -n monitoring get all
kubectl -n monitoring get pod -w

# 附：清空上面部署的prometheus所有服务：
kubectl delete --ignore-not-found=true -f manifests/ -f manifests/setup

创建ingress

访问下prometheus的UI

# vim prometheus-ingress.yaml
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: prometheus
spec:
  rules:
  - host: prometheus.boge.com
    http:
      paths:
      - backend:
          service:
            name: prometheus-k8s
            port:
              number: 9090
        path: /
        pathType: Prefix
# kubectl -n monitoring apply -f prometheus-ingress.yaml

grafana ingress创建

# vim grafana-ingress.yaml
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: grafana
spec:
  rules:
  - host: grafana.boge.com
    http:
      paths:
      - backend:
          service:
            name: grafana
            port:
              number: 3000
        path: /
        pathType: Prefix
# kubectl -n monitoring apply -f grafana-ingress.yaml

问题：

打开prometheus.boge.com 和grafana.boge.com 显示 502

# kubectl -n monitoring exec -it prometheus-k8s-0 -- sh
/prometheus $ netstat -tulnp
Active Internet connections (only servers)
Proto Recv-Q Send-Q Local Address           Foreign Address         State       PID/Program name
tcp        0      0 :::8080                 :::*                    LISTEN      -
tcp        0      0 :::9090                 :::*                    LISTEN      1/prometheus

/home $ wget 127.0.0.1:9090
Connecting to 127.0.0.1:9090 (127.0.0.1:9090)
wget: can't open 'index.html': Read-only file system


telnet 127.0.0.1 9090
说明本地访问是正常的
在master节点直接访问其他命名空间的svc也是没问题的
解决↓

注意：删除自带的网络策略（新版），否则访问服务都会被阻塞

https://github.com/prometheus-operator/kube-prometheus/issues/1763#issuecomment-1139553506

# kubectl -n monitoring delete networkpolicies.networking.k8s.io --all
networkpolicy.networking.k8s.io "alertmanager-main" deleted
networkpolicy.networking.k8s.io "blackbox-exporter" deleted
networkpolicy.networking.k8s.io "grafana" deleted
networkpolicy.networking.k8s.io "kube-state-metrics" deleted
networkpolicy.networking.k8s.io "node-exporter" deleted
networkpolicy.networking.k8s.io "prometheus-adapter" deleted
networkpolicy.networking.k8s.io "prometheus-k8s" deleted
networkpolicy.networking.k8s.io "prometheus-operator" deleted

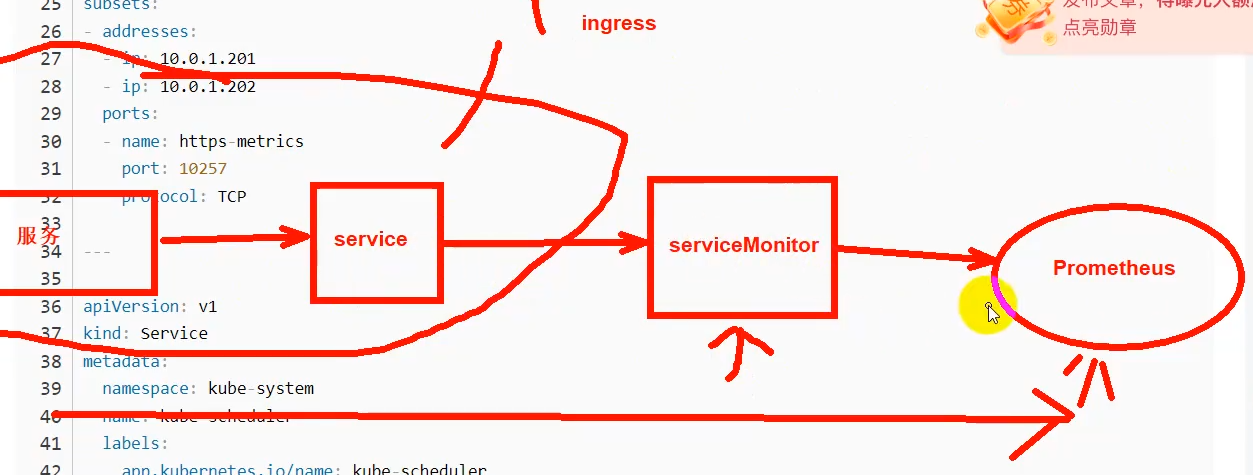

(三) 修复核心服务监控

访问prometheus后台，点击上方菜单栏Status — Targets ，我们发现kube-controller-manager和kube-scheduler未发现

接下来我们解决下这一个碰到的问题吧

Status — Targets 一些在监听的服务

# 这里我们发现这两服务监听的IP是0.0.0.0 正常
# ss -tlnp|egrep 'controller|schedule'
LISTEN 0      32768              *:10257            *:*    users:(("kube-controller",pid=3528,fd=3))     LISTEN 0      32768              *:10259            *:*    users:(("kube-scheduler",pid=837,fd=3))
# curl https://10.0.1.201:10257/metrics
curl: (60) SSL certificate problem: self-signed certificate in certificate chain
More details here: https://curl.se/docs/sslcerts.html

curl failed to verify the legitimacy of the server and therefore could not
establish a secure connection to it. To learn more about this situation and
how to fix it, please visit the web page mentioned above.


# curl -k https://10.0.1.201:10257/metrics
{
  "kind": "Status",
  "apiVersion": "v1",
  "metadata": {},
  "status": "Failure",
  "message": "forbidden: User \"system:anonymous\" cannot get path \"/metrics\"",
  "reason": "Forbidden",
  "details": {},
  "code": 403
}


403拒绝，要证书

systemctl status kube-controller-manager.service
部署一个servicemonitor能把相应的service的指标暴露给prometheus-server

现在有kube-controller-manager和kube-scheduler的servicemonitor但是没有service就识别不到

image-20240622190916550

然后因为K8s的这两上核心组件我们是以二进制形式部署的，为了能让K8s上的prometheus能发现，我们需要来创建相应的service和endpoints来将其关联起来

Endpoints和Service的名称要一样的

注意：我们需要将endpoints里面的NODE IP换成我们实际情况的

apiVersion: v1
kind: Service
metadata:
  namespace: kube-system
  name: kube-controller-manager
  labels:
    app.kubernetes.io/name: kube-controller-manager
spec:
  type: ClusterIP
  clusterIP: None
  ports:
  - name: https-metrics
    port: 10257
    targetPort: 10257
    protocol: TCP

---
apiVersion: v1
kind: Endpoints
metadata:
  labels:
    app.kubernetes.io/name: kube-controller-manager
  name: kube-controller-manager
  namespace: kube-system
subsets:
- addresses:
  - ip: 10.0.1.201
  - ip: 10.0.1.202
  ports:
  - name: https-metrics
    port: 10257
    protocol: TCP

---

apiVersion: v1
kind: Service
metadata:
  namespace: kube-system
  name: kube-scheduler
  labels:
    app.kubernetes.io/name: kube-scheduler
spec:
  type: ClusterIP
  clusterIP: None
  ports:
  - name: https-metrics
    port: 10259
    targetPort: 10259
    protocol: TCP

---
apiVersion: v1
kind: Endpoints
metadata:
  labels:
    app.kubernetes.io/name: kube-scheduler
  name: kube-scheduler
  namespace: kube-system
subsets:
- addresses:
  - ip: 10.0.1.201
  - ip: 10.0.1.202
  ports:
  - name: https-metrics
    port: 10259
    protocol: TCP

将上面的yaml配置保存为repair-prometheus.yaml，然后创建它

# kubectl apply -f repair-prometheus.yaml
service/kube-controller-manager created
endpoints/kube-controller-manager created
service/kube-scheduler created
endpoints/kube-scheduler created

创建完成后确认下

# kubectl -n kube-system get svc |egrep 'controller|scheduler'
kube-controller-manager   ClusterIP   None           <none>        10257/TCP                      14s
kube-scheduler            ClusterIP   None           <none>        10259/TCP                      14s

然后再返回prometheus UI处，耐心等待一会，就能看到已经被发现了

serviceMonitor/monitoring/kube-controller-manager/0 (2/2 up)
serviceMonitor/monitoring/kube-scheduler/0 (2/2 up)
云平台的非自建K8S的一些核心服务相当于黑盒
新版的可能会显示
旧版可能会识别不到或者显示警告、错误 可以忽略它
后面带大家怎么屏蔽掉报警，自己写一个普罗米修斯报警接收、发生服务去做一些关键词过滤

(四) 监控ETCD集群

这节课我们利用prometheus来监控二进制部署的ETCD集群。

作为K8s所有资源存储的关键服务ETCD，我们也有必要把它给监控起来，正好借这个机会，完整的演示一次利用Prometheus来监控非K8s集群服务的步骤

在前面部署K8s集群的时候，我们是用二进制的方式部署的ETCD集群，并且利用自签证书来配置访问ETCD，正如前面所说，现在关键的服务基本都会留有指标metrics接口支持prometheus的监控，利用下面命令，我们可以看到ETCD都暴露出了哪些监控指标出来

curl --cacert /etc/kubernetes/ssl/ca.pem --cert /etc/kubeasz/clusters/test-cn/ssl/etcd.pem  --key /etc/kubeasz/clusters/test-cn/ssl/etcd-key.pem https://10.0.1.201:2379/metrics

上面查看没问题后，接下来我们开始进行配置使ETCD能被prometheus发现并监控

# 首先把ETCD的证书创建为secret
kubectl -n monitoring create secret generic etcd-certs --from-file=/etc/kubeasz/clusters/test-cn/ssl/etcd.pem   --from-file=/etc/kubeasz/clusters/test-cn/ssl/etcd-key.pem   --from-file=/etc/kubeasz/clusters/test-cn/ssl/ca.pem

# 接着在prometheus里面引用这个secrets
kubectl -n monitoring edit prometheus k8s

spec:
...
  secrets:
  - etcd-certs

# 保存退出后，prometheus会自动重启服务pod以加载这个secret配置，过一会，我们进pod来查看下是不是已经加载到ETCD的证书了
# kubectl -n monitoring exec -it prometheus-k8s-0 -c prometheus -- sh
/prometheus $ ls -lh /etc/prometheus/secrets/etcd-certs/
total 0
lrwxrwxrwx    1 root     2000          13 Jun 23 15:30 ca.pem -> ..data/ca.pem
lrwxrwxrwx    1 root     2000          19 Jun 23 15:30 etcd-key.pem -> ..data/etcd-key.pem
lrwxrwxrwx    1 root     2000          15 Jun 23 15:30 etcd.pem -> ..data/etcd.pem

接下来准备创建service、endpoints以及ServiceMonitor的yaml配置

注意替换下面的NODE节点IP为实际ETCD所在NODE内网IP

# vim prometheus-etcd.yaml
apiVersion: v1
kind: Service
metadata:
  name: etcd-k8s
  namespace: monitoring
  labels:
    k8s-app: etcd
spec:
  type: ClusterIP
  clusterIP: None
  ports:
  - name: api
    port: 2379
    protocol: TCP
---
apiVersion: v1
kind: Endpoints
metadata:
  name: etcd-k8s
  namespace: monitoring
  labels:
    k8s-app: etcd
subsets:
- addresses:
  - ip: 10.0.1.201
  - ip: 10.0.1.202
  - ip: 10.0.1.203
  ports:
  - name: api
    port: 2379
    protocol: TCP
---
apiVersion: monitoring.coreos.com/v1
kind: ServiceMonitor
metadata:
  name: etcd-k8s
  namespace: monitoring
  labels:
    k8s-app: etcd-k8s
spec:
  jobLabel: k8s-app
  endpoints:
  - port: api
    interval: 30s # 抓取频率,可自行调节
    scheme: https
    tlsConfig:
      caFile: /etc/prometheus/secrets/etcd-certs/ca.pem
      certFile: /etc/prometheus/secrets/etcd-certs/etcd.pem
      keyFile: /etc/prometheus/secrets/etcd-certs/etcd-key.pem
      #use insecureSkipVerify only if you cannot use a Subject Alternative Name
      insecureSkipVerify: true
  selector:
    # svc的lable
    matchLabels:
      k8s-app: etcd
  namespaceSelector:
    matchNames:
    - monitoring

开始创建上面的资源

# kubectl apply -f prometheus-etcd.yaml
service/etcd-k8s created
endpoints/etcd-k8s created
servicemonitor.monitoring.coreos.com/etcd-k8s created

过一会，就可以在prometheus UI上面看到ETCD集群被监控了

serviceMonitor/monitoring/etcd-k8s/0 (3/3 up)

接下来我们用grafana来展示被监控的ETCD指标

1. 在grafana官网模板中心搜索etcd，下载这个json格式的模板文件
https://grafana.com/grafana/dashboards/3070-etcd/

2.然后打开自己先部署的grafana首页，
admin admin
点击左上边菜单栏HOME --- Administration --- Data source --- Add data source --- 选择 Prometheus

查看prometheus的详细地址 并编辑进去保存：
# kubectl -n monitoring get secrets grafana-datasources -o yaml
apiVersion: v1
data:
  datasources.yaml: ewogICAgImFwaVZlcnNpb24iOiAxLAogICAgImRhdGFzb3VyY2VzIjogWwogICAgICAgIHsKICAgICAgICAgICAgImFjY2VzcyI6ICJwcm94eSIsCiAgICAgICAgICAgICJlZGl0YWJsZSI6IGZhbHNlLAogICAgICAgICAgICAibmFtZSI6ICJwcm9tZXRoZXVzIiwKICAgICAgICAgICAgIm9yZ0lkIjogMSwKICAgICAgICAgICAgInR5cGUiOiAicHJvbWV0aGV1cyIsCiAgICAgICAgICAgICJ1cmwiOiAiaHR0cDovL3Byb21ldGhldXMtazhzLm1vbml0b3Jpbmcuc3ZjOjkwOTAiLAogICAgICAgICAgICAidmVyc2lvbiI6IDEKICAgICAgICB9CiAgICBdCn0=
kind: Secret
metadata:
  creationTimestamp: "2024-06-23T14:13:28Z"
  labels:
    app.kubernetes.io/component: grafana
    app.kubernetes.io/name: grafana
    app.kubernetes.io/part-of: kube-prometheus
    app.kubernetes.io/version: 9.5.3
  name: grafana-datasources
  namespace: monitoring
  resourceVersion: "317846"
  uid: baef77ea-7dd7-46d6-8af1-3ac968b396dd
type: Opaque

解码
# echo "ewogICAgImFwaVZlcnNpb24iOiAxLAogICAgImRhdGFzb3VyY2VzIjogWwogICAgICAgIHsKICAgICAgICAgICAgImFjY2VzcyI6ICJwcm94eSIsCiAgICAgICAgICAgICJlZGl0YWJsZSI6IGZhbHNlLAogICAgICAgICAgICAibmFtZSI6ICJwcm9tZXRoZXVzIiwKICAgICAgICAgICAgIm9yZ0lkIjogMSwKICAgICAgICAgICAgInR5cGUiOiAicHJvbWV0aGV1cyIsCiAgICAgICAgICAgICJ1cmwiOiAiaHR0cDovL3Byb21ldGhldXMtazhzLm1vbml0b3Jpbmcuc3ZjOjkwOTAiLAogICAgICAgICAgICAidmVyc2lvbiI6IDEKICAgICAgICB9CiAgICBdCn0=" | base64 --decode
{
    "apiVersion": 1,
    "datasources": [
        {
            "access": "proxy",
            "editable": false,
            "name": "prometheus",
            "orgId": 1,
            "type": "prometheus",
            "url": "http://prometheus-k8s.monitoring.svc:9090",
            "version": 1
        }
    ]
}

http://prometheus-k8s.monitoring.svc:9090

下滑选择保存测试

再点击右上角 +^ Import dashboard ---
点击Upload .json File 按钮，上传上面下载好的json文件 3070_rev3.json，

选择刚刚的  prometheus-1

点击Import，即可显示etcd集群的图形监控信息

Etcd has a leader?

Edit

Metrics browser

max(etcd_server_has_leader)

把max(etcd_server_has_leader)复制到Prometheus的Graph执行

# kubectl top node
NAME         CPU(cores)   CPU%   MEMORY(bytes)   MEMORY%
10.0.1.201   251m         6%     3153Mi          88%
10.0.1.202   154m         7%     1741Mi          48%
10.0.1.203   284m         14%    3888Mi          69%
10.0.1.204   156m         7%     2816Mi          78%

# 其实node1只用了1.95/3.79G

(五) 监控ingress controller

我们前面部署过ingress-nginx，这个是整个K8s上所有服务的流量入口组件很关键，因此把它的metrics指标收集到prometheus来做好相关监控至关重要，因为前面ingress-nginx服务是以daemonset形式部署的，并且映射了自己的端口到宿主机上，那么我可以直接用pod运行NODE上的IP来看下metrics

# kubectl -n kube-system get pod  -o wide|grep nginx-ingress

# kubectl -n test-ingress-controller get pod  -o wide|grep nginx-ingress
nginx-ingress-controller-64j57         1/1     Running     14 (63m ago)   11d   10.0.1.201   10.0.1.201   <none>           <none>
nginx-ingress-controller-8bq9m         1/1     Running     6 (78m ago)    81m   10.0.1.202   10.0.1.202   <none>           <none>


# 开启metrics指标
# kubectl -n kube-system edit ds nginx-ingress-controller

# kubectl -n test-ingress-controller edit ds nginx-ingress-controller
# 搜索 enable-metrics   ， 找到  - --enable-metrics=  设置为 true
# 如果业务上不需要监控指标，可以关闭，减少资源损耗

# curl 10.0.1.201:10254/metrics

# HELP go_gc_duration_seconds A summary of the pause duration of garbage collection cycles.
# TYPE go_gc_duration_seconds summary
go_gc_duration_seconds{quantile="0"} 3.9813e-05
go_gc_duration_seconds{quantile="0.25"} 7.174e-05
go_gc_duration_seconds{quantile="0.5"} 0.000131089
go_gc_duration_seconds{quantile="0.75"} 0.000511873
go_gc_duration_seconds{quantile="1"} 0.20378584
go_gc_duration_seconds_sum 0.472987359
go_gc_duration_seconds_count 211
......

创建 servicemonitor配置让prometheus能发现ingress-nginx的metrics

# vim ingress-nginx-servicemonitor.yaml
apiVersion: monitoring.coreos.com/v1
kind: ServiceMonitor
metadata:
  labels:
    app: ingress-nginx
  name: nginx-ingress-scraping
  # namespace: kube-system
  namespace: test-ingress-controller
spec:
  endpoints:
  - interval: 30s
    path: /metrics
    # port name 在svc里定义
    port: metrics
  jobLabel: app
  namespaceSelector:
    matchNames:
    # ingress controller的命名空间
    # - kube-system
    - test-ingress-controller
  selector:
    matchLabels:
      app: ingress-nginx
apiVersion: monitoring.coreos.com/v1
kind: ServiceMonitor
metadata:
  labels:
    app: ingress-nginx
  name: nginx-ingress-scraping
  namespace: test-ingress-controller
spec:
  endpoints:
  - interval: 30s
    path: /metrics
    port: metrics
  jobLabel: app
  namespaceSelector:
    matchNames:
    - test-ingress-controller
  selector:
    matchLabels:
      app: ingress-nginx

该 ServiceMonitor 的作用是监控命名空间 test-ingress-controller 中标签为 app: ingress-nginx 的服务，定期访问其 /metrics 路径

kubectl  -n test-ingress-controller get service -l app=ingress-nginx

创建它

# kubectl apply -f ingress-nginx-servicemonitor.yaml
servicemonitor.monitoring.coreos.com/nginx-ingress-scraping created
# kubectl -n test-ingress-controller get servicemonitors.monitoring.coreos.com
NAME                     AGE
nginx-ingress-scraping   43s

kubectl -n test-ingress-controller describe servicemonitors.monitoring.coreos.com  etcd-k8s

kubectl -n monitoring get servicemonitors.monitoring.coreos.com

# kubectl delete -f ingress-nginx-servicemonitor.yaml

kubectl -n test-ingress-controller get svc

kubectl -n test-ingress-controller describe svc nginx-ingress-lb


kubectl -n test-ingress-controller edit svc nginx-ingress-lb


kubectl get endpoints -n test-ingress-controller

等个2-3分钟再到prometheus UI上看下，发现已经有了

serviceMonitor/kube-system/nginx-ingress-scraping/0 (1/1 up)

下载grafana模板导入使用

https://grafana.com/grafana/dashboards/14314-kubernetes-nginx-ingress-controller-nextgen-devops-nirvana/

(六) 持久化存储

prometheus和grafana的持久化存储

prometheus配置持久化数据

# 注意这下面的statefulset服务就是我们需要做数据持久化的地方
# kubectl -n monitoring get statefulset,pod|grep prometheus-k8s
statefulset.apps/prometheus-k8s      2/2     4d1h
pod/prometheus-k8s-0                       2/2     Running   4 (11m ago)      3d23h
pod/prometheus-k8s-1                       2/2     Running   4 (11m ago)      3d23h


# 看下我们之前准备的StorageClass动态存储
# kubectl get sc
NAME       PROVISIONER          RECLAIMPOLICY   VOLUMEBINDINGMODE   ALLOWVOLUMEEXPANSION   AGE
nfs-boge   nfs-provisioner-01   Retain          Immediate           false                  11d


# 准备prometheus持久化的pvc配置
# kubectl -n monitoring edit prometheus k8s

spec:
......
  storage:
    volumeClaimTemplate:
      spec:
        accessModes: [ "ReadWriteOnce" ]
        storageClassName: "nfs-boge"
        resources:
          requests:
            storage: 1Gi # 根据情况加大,50G,100G

# 上面修改保存退出后，过一会我们查看下pvc创建情况，以及pod内的数据挂载情况
# kubectl -n monitoring get pvc
NAME                                 STATUS   VOLUME                                     CAPACITY   ACCESS MODES   STORAGECLASS   AGE
prometheus-k8s-db-prometheus-k8s-0   Bound    pvc-08c01fd9-f18d-45ca-99fd-aaffdd1f4aa6   1Gi        RWO            nfs-boge       6s
prometheus-k8s-db-prometheus-k8s-1   Bound    pvc-446dea20-0eff-452a-9c40-23b2acf7fd95   1Gi        RWO            nfs-boge       6s



# kubectl -n monitoring exec -it prometheus-k8s-0 -c prometheus -- sh
/prometheus $ df -Th
......
10.0.1.201:/nfs_dir/monitoring-prometheus-k8s-db-prometheus-k8s-0-pvc-055e6b11-31b7-4503-ba2b-4f292ba7bd06/prometheus-db
                     nfs4           97.7G      9.4G     88.2G  10% /prometheus



kubectl -n monitoring delete pod prometheus-k8s-0 &&  kubectl -n monitoring delete pvc prometheus-k8s-db-prometheus-k8s-0 && kubectl -n monitoring delete pod prometheus-k8s-1  &&  kubectl -n monitoring delete pvc prometheus-k8s-db-prometheus-k8s-1

grafana配置持久化存储

# 保存pvc为grafana-pvc.yaml
kind: PersistentVolumeClaim
apiVersion: v1
metadata:
  name: grafana
  namespace: monitoring
spec:
  storageClassName: nfs-boge
  accessModes:
    - ReadWriteMany
  resources:
    requests:
      storage: 1Gi # 相对普罗米修斯需求不大，存放模板，分配个5G，10G，20G
# 开始创建pvc
# kubectl apply -f grafana-pvc.yaml

kubectl -n monitoring get pod
# kubectl -n monitoring delete pod grafana-676df8577b-jcdkt && kubectl delete -f grafana-pvc.yaml
# 看下创建的pvc
# kubectl -n monitoring get pvc
NAME                                 STATUS   VOLUME                                     CAPACITY   ACCESS MODES   STORAGECLASS   AGE
grafana                              Bound    pvc-2bfb5ae9-d159-4418-ac49-a8dd36fbc39d   1Gi        RWX            nfs-boge       9s
prometheus-k8s-db-prometheus-k8s-0   Bound    pvc-08c01fd9-f18d-45ca-99fd-aaffdd1f4aa6   1Gi        RWO            nfs-boge       3m28s
prometheus-k8s-db-prometheus-k8s-1   Bound    pvc-446dea20-0eff-452a-9c40-23b2acf7fd95   1Gi        RWO            nfs-boge       3m28s



# 编辑grafana的deployment资源配置
# kubectl -n monitoring edit deployments.apps grafana

# 旧的配置
      volumes:
      - emptyDir: {}
        name: grafana-storage
# 替换成新的配置
      volumes:
      - name: grafana-storage
        persistentVolumeClaim:
          claimName: grafana

# 同时加入下面的env环境变量，将登陆密码进行固定修改
    spec:
      containers:
      ......
      - image:
        env:
        - name: GF_SECURITY_ADMIN_USER
          value: boge
        - name: GF_SECURITY_ADMIN_PASSWORD
          value: admin321


修改pvc和环境变量的账户密码要同时进行。如果先修改pvc再修改环境变量，要删除pvc重新创建pvc
# 过一会，等grafana重启完成后，用上面的新密码进行登陆
# kubectl -n monitoring get pod -w|grep grafana
grafana-5698bf94f4-prbr2               0/1     Running   0          3s
grafana-5698bf94f4-prbr2               1/1     Running   0          4s

# 因为先前的数据并未持久化，所以会发现先导入的ETCD模板已消失，这时重新再导入一次，后面重启也不会丢了

数据源
http://prometheus-k8s.monitoring.svc:9090
svc可以省略，grafana跟promethues一个命名空间，连monitoring都可以省略
http://prometheus-k8s:9090
为什么把k8s配置    spec:
      automountServiceAccountToken: false
      containers:
      - image: easzlab.io.local:5000/grafana/grafana:9.5.3
        imagePullPolicy: IfNotPresent
        name: grafana
        ports:
        - containerPort: 3000
          name: http
          protocol: TCP
          改为
		spec:
      automountServiceAccountToken: false
      containers:
      - image: easzlab.io.local:5000/grafana/grafana:9.5.3
        imagePullPolicy: IfNotPresent
        name: grafana
        env:
        - name: GF_SECURITY_ADMIN_USER
          value: boge
        - name: GF_SECURITY_ADMIN_PASSWORD
          value: admin321
        ports:
        - containerPort: 3000
          name: http
          protocol: TCP

          结果是变成了
    spec:
      automountServiceAccountToken: false
      containers:
      - env:
        - name: GF_SECURITY_ADMIN_USER
          value: boge
        - name: GF_SECURITY_ADMIN_PASSWORD
          value: admin321
        image: easzlab.io.local:5000/grafana/grafana:9.5.3
        imagePullPolicy: IfNotPresent
        name: grafana
        ports:
        - containerPort: 3000
          name: http
          protocol: TCP
变化前后env和image始终都是平级的
这个顺序的变化对 Kubernetes 部署本身没有影响，因为 YAML 的键值对顺序在解析时并不重要。Kubernetes 会正确地解析和应用这些配置，所以只要属性的值是正确的，顺序的改变不会影响应用程序的实际行为。
kubectl -n monitoring exec -it grafana-676df8577b-jcdkt -- sh

env
GF_SECURITY_ADMIN_PASSWORD=admin321
GF_SECURITY_ADMIN_USER=boge

(七) promql语法

对于怎么使用promql语法，也教了大家取巧的方式通过现有成熟的grafana模板，学习其中监控语法的使用，但是却是知其然而不知其所以然。

尤其是这个promql语法，想着怎么更好地让大家理解掌握它，想起来自己在几年前初学prometheus的时候，有幸找到了一些优秀的文章，在使用prometheus就没有走多少弯路，那这节课回归理论性的内容，给大家分享些这些优秀的内容。

https://yunlzheng.gitbook.io/prometheus-book

https://github.com/yunlzheng/prometheus-book

如果上面的内容找不开或很慢，那么可以通过下面的github国内镜像站来打开查看

https://githubfast.com/yunlzheng/prometheus-book

(八) golang暴露prometheus指标

从这节课开始，博哥计划引入golang（简称go）语言开发的一些内容，没有接触过go语言的同学也不用慌，我会尽量以一个新人的角度，去把这些go开发的内容讲得通俗一些。这节课还是继续 prometheus监控相关的内容，博哥带大家用go语言开发一个简单的http服务并暴露相应的prometheus指标。

首先电脑上需要安装好go语言，下载链接（选择相应的系统安装包）:

https://golang.google.cn/dl/

然后安装好vscode这个编程IDE工具：

https://code.visualstudio.com/

配置好vscode里面go的相关插件，可以参考下这个文档：

https://zhuanlan.zhihu.com/p/320343679

Code Runner插件

我来先准备写一个简单的http服务扮演我们的业务服务角色

翻译自：https://prometheus.io/docs/tutorials/instrumenting_http_server_in_go/

// 入口包
package main

import (
    // 打印依赖
    "fmt"
    "net/http"
)

// 函数
func ping(w http.ResponseWriter, req *http.Request){
    fmt.Fprintf(w,"pong")
}

// 执行入口
func main() {
    http.HandleFunc("/ping",ping)

    业务端口
    http.ListenAndServe(":8090", nil)
}
// 入口包
package main

import (
   "fmt"
   "net/http"
)

func ping(w http.ResponseWriter, req *http.Request){
   fmt.Fprintf(w,"pong")
}

func main() {
   http.HandleFunc("/ping",ping)

   http.ListenAndServe(":8090", nil)
}

运行测试下，确保服务访问正常

然后我们准备创建一个 Prometheus counter计数器（只增不减），来记录请求数

var pingCounter = prometheus.NewCounter(
   prometheus.CounterOpts{
       Name: "ping_request_count",
       Help: "No of request handled by Ping handler",
   },
)

接着我们在ping函数里面加入 pingCounter.Inc()来引用这个计数器

func ping(w http.ResponseWriter, req *http.Request) {
   pingCounter.Inc()
   fmt.Fprintf(w, "pong")
}

然后将计数器注册到 Default Register 并公开指标

func main() {
   prometheus.MustRegister(pingCounter)
   http.HandleFunc("/ping", ping)
   http.Handle("/metrics", promhttp.Handler())
   http.ListenAndServe(":8090", nil)
}

最终完整代码如下:

package main

import (
   "fmt"
   "net/http"

   "github.com/prometheus/client_golang/prometheus"
   "github.com/prometheus/client_golang/prometheus/promhttp"
)

var pingCounter = prometheus.NewCounter(
   prometheus.CounterOpts{
       Name: "ping_request_count",
       Help: "No of request handled by Ping handler",
   },
)

func ping(w http.ResponseWriter, req *http.Request) {
   pingCounter.Inc()
   fmt.Fprintf(w, "pong")
}

func main() {
   prometheus.MustRegister(pingCounter)

   http.HandleFunc("/ping", ping)
   http.Handle("/metrics", promhttp.Handler())
   http.ListenAndServe(":8090", nil)
}
// 导入必需的包
package main

import (
	"fmt"          // 用于格式化输入输出
	"net/http"     // 提供HTTP客户端和服务端实现

	"github.com/prometheus/client_golang/prometheus" // Prometheus客户端库
	"github.com/prometheus/client_golang/prometheus/promhttp" // Prometheus的HTTP处理函数
)

// 定义一个新的计数器来记录/ping的请求数量
var pingCounter = prometheus.NewCounter(
	prometheus.CounterOpts{ // 配置计数器选项
		Name: "ping_request_count", // 计数器的唯一名称
		Help: "Number of requests handled by the Ping handler", // 计数器的帮助说明
	},
)

// ping 处理函数，响应/ping 的HTTP请求
func ping(w http.ResponseWriter, req *http.Request) {
	pingCounter.Inc() // 每次请求时增加计数器的值
	fmt.Fprintf(w, "pong") // 向客户端响应 "pong"
}

// 主函数，程序入口
func main() {
	// 注册pingCounter到Prometheus的默认注册表
	prometheus.MustRegister(pingCounter)

	// 设置HTTP路由，当访问/ping时调用ping函数处理
	http.HandleFunc("/ping", ping)

	// 设置/metrics路由，用于暴露Prometheus监控指标
	http.Handle("/metrics", promhttp.Handler())

	// 启动HTTP服务器，监听8090端口
	http.ListenAndServe(":8090", nil)
}

我们准备来运行它

# 初始化包管理
go mod init prometheus
# 用国内加速代理下载包
export GOPROXY=https://goproxy.cn
# 更新依赖包
go mod tidy
# 运行服务
go run server.go

go run main.go
D:\Code\VSCode_Code\go\workspace\prometheus>go mod init prometheus
go: creating new go.mod: module prometheus
go: to add module requirements and sums:
        go mod tidy

D:\Code\VSCode_Code\go\workspace\prometheus>go mod tidy
go: finding module for package github.com/prometheus/client_golang/prometheus/promhttp
go: finding module for package github.com/prometheus/client_golang/prometheus
go: found github.com/prometheus/client_golang/prometheus in github.com/prometheus/client_golang v1.19.1
go: found github.com/prometheus/client_golang/prometheus/promhttp in github.com/prometheus/client_golang v1.19.1

查看暴露的指标

http://127.0.0.1:8090/metrics

搜索ping_request_count

增加一些请求数

http://127.0.0.1:8090/ping

# HELP ping_request_count No of request handled by Ping handler
# TYPE ping_request_count counter
ping_request_count 9

这里我们可以修改prometheus的配置，来监控我们自定义的这个服务

global:
  scrape_interval: 15s

scrape_configs:
  - job_name: prometheus
    static_configs:
      - targets: ["localhost:9090"]
  - job_name: simple_server
    static_configs:
      # 二进制 非容器运行的引用
      - targets: ["localhost:8090"]

或者也可以参照博哥之前的课程，用serviceMonitor来暴露指标

(九) webhook报警

早期我们经常用邮箱接收报警邮件，但是报警不及时，而且目前各云平台对邮件发送限制还比较严格，所以目前在生产中用得更为多的是基于webhook来转发报警内容到企业中用的聊天工具中，比如钉钉、企业微信、飞书等。

prometheus的报警组件是Alertmanager，它支持自定义webhook的方式来接受它发出的报警，它发出的日志json字段比较多，我们需要根据需要接收的app来做相应的日志清洗转发

这里博哥将用golang结合Gin网络框架来编写一个日志清洗转发工具，分别对这几种常用的报警方式作详细的说明及实战，源码的分享计划放入golang语言开发讲解课程里面，这样大家更容易接受。

https://github.com/bogeit/LearnK8s/tree/main/2023/boge-webhook

我们先制作好镜像，并上传到我们自己的私有仓库Harbor里面

# 使用alpine:3.18作为基础镜像
FROM alpine:3.18

# 设置镜像维护者信息
MAINTAINER Boge <github.com/bogeit>

# 设置环境变量 TZ 为 "Asia/Shanghai"
ENV TZ "Asia/Shanghai"

# 修改Alpine Linux的包管理器仓库为阿里云镜像站
# 安装curl、tzdata和ca-certificates软件包
# 将时区设置为Asia/Shanghai
# 升级已安装的软件包
# 清理apk缓存

RUN sed -ri 's+dl-cdn.alpinelinux.org+mirrors.aliyun.com+g' /etc/apk/repositories \
 && apk add --no-cache curl tzdata ca-certificates \
 && cp -f /usr/share/zoneinfo/Asia/Shanghai /etc/localtime \
 && apk upgrade \
 && rm -rf /var/cache/apk/*

# 将本地文件mycli复制到容器中的/usr/local/bin/目录下
COPY mycli /usr/local/bin/

# 给/usr/local/bin/mycli文件添加可执行权限
RUN chmod +x /usr/local/bin/mycli

# 设置容器的入口点为mycli，并传入参数"-h"
ENTRYPOINT ["mycli"]
CMD ["-h"]
# 将上面代码仓库文件内容下载到目录
# 确认文件是否在当前目录
ls -l Dockerfile mycli
# 构建镜像
docker build -t harbor.boge.com/product/alertmanaer-webhook:1.0 .
# 上传镜像
docker push  harbor.boge.com/product/alertmanaer-webhook:1.0
# 创建harbor私有仓库密钥,用于拉取私有镜像
# 在Kubernetes集群中的命名空间（namespace）monitoring中创建一个名为boge-secret的Docker仓库密钥（docker-registry secret）
kubectl -n monitoring create secret docker-registry boge-secret --docker-server=harbor.boge.com --docker-username=boge --docker-password=Boge@666 --docker-email=admin@boge.com
# docker build -t harbor.boge.com/product/alertmanaer-webhook:1.0 .
DEPRECATED: The legacy builder is deprecated and will be removed in a future release.
            Install the buildx component to build images with BuildKit:
            https://docs.docker.com/go/buildx/

Sending build context to Docker daemon  3.916MB
Step 1/8 : FROM alpine:3.18
3.18: Pulling from library/alpine
73baa7ef167e: Pull complete
Digest: sha256:1875c923b73448b558132e7d4a44b815d078779ed7a73f76209c6372de95ea8d
Status: Downloaded newer image for alpine:3.18
 ---> 8fd7cac70a4a
Step 2/8 : MAINTAINER Boge <github.com/bogeit>
 ---> Running in 76a4b9752f37
Removing intermediate container 76a4b9752f37
 ---> bc0ae5f6090d
Step 3/8 : ENV TZ "Asia/Shanghai"
 ---> Running in 0edc569813ce
Removing intermediate container 0edc569813ce
 ---> cd2450689a9a
Step 4/8 : RUN sed -ri 's+dl-cdn.alpinelinux.org+mirrors.aliyun.com+g' /etc/apk/repositories  && apk add --no-cache curl tzdata ca-certificates  && cp -f /usr/share/zoneinfo/Asia/Shanghai /etc/localtime  && apk upgrade  && rm -rf /var/cache/apk/*
 ---> Running in 82394b63f05c
fetch https://mirrors.aliyun.com/alpine/v3.18/main/x86_64/APKINDEX.tar.gz
fetch https://mirrors.aliyun.com/alpine/v3.18/community/x86_64/APKINDEX.tar.gz
(1/8) Installing ca-certificates (20240226-r0)
(2/8) Installing brotli-libs (1.0.9-r14)
(3/8) Installing libunistring (1.1-r1)
(4/8) Installing libidn2 (2.3.4-r1)
(5/8) Installing nghttp2-libs (1.57.0-r0)
(6/8) Installing libcurl (8.5.0-r0)
(7/8) Installing curl (8.5.0-r0)
(8/8) Installing tzdata (2024a-r0)
Executing busybox-1.36.1-r7.trigger
Executing ca-certificates-20240226-r0.trigger
OK: 15 MiB in 23 packages
fetch https://mirrors.aliyun.com/alpine/v3.18/main/x86_64/APKINDEX.tar.gz
fetch https://mirrors.aliyun.com/alpine/v3.18/community/x86_64/APKINDEX.tar.gz
OK: 15 MiB in 23 packages
Removing intermediate container 82394b63f05c
 ---> 751a5dac9da1
Step 5/8 : COPY mycli /usr/local/bin/
 ---> c28ffe02c6ce
Step 6/8 : RUN chmod +x /usr/local/bin/mycli
 ---> Running in 773c8b135e53
Removing intermediate container 773c8b135e53
 ---> a48e3d438f06
Step 7/8 : ENTRYPOINT ["mycli"]
 ---> Running in 3f10f415ed3c
Removing intermediate container 3f10f415ed3c
 ---> 72d7b8fb0c33
Step 8/8 : CMD ["-h"]
 ---> Running in 86c1339b5910
Removing intermediate container 86c1339b5910
 ---> 3a2bec77b57f
Successfully built 3a2bec77b57f
Successfully tagged harbor.boge.com/product/alertmanaer-webhook:1.0


# docker push  harbor.boge.com/product/alertmanaer-webhook:1.0
The push refers to repository [harbor.boge.com/product/alertmanaer-webhook]
d7de58021090: Pushed
2ea2b53cb4e0: Pushed
c2c46528e4ae: Pushed
63ec0bd56cf3: Pushed
1.0: digest: sha256:5d1e904c6537a6f9bcee1d5c6456bcd1f2b4b31f6c5dae7f0dbdf6e8f3af7ea7 size: 1161

将构建好的后端转发服务部署到K8S上面

先修改alertmanaer-webhook.yaml

kind: Deployment
metadata:
  name: alertmanaer-dingtalk-dp
spec:
    spec:
      containers:
      - name: alertmanaer-webhook
        image: harbor.boge.com/product/alertmanaer-webhook:1.0
        args:
          - web
          - "https://oapi.dingtalk.com/robot/send?access_token=xxxxxxxxxxxxxxxxxxxxxxx"
          - "9999"
  • 自定义关键词 (不知道)
  • IP 地址（没有公网ip）
  • 加签
kubectl -n monitoring apply -f alertmanaer-webhook.yaml

# 如果出现镜像拉取失败问题，注意看当前pod运行的节点，上面需要添加私有仓库的本地hosts
# vim /etc/hosts
10.0.1.201    easzlab.io.local harbor.boge.com

# kubectl -n monitoring get svc
NAME                       TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)                      AGE
alertmanaer-dingtalk-svc   ClusterIP   10.68.2.240     <none>        80/TCP                       27s


# curl 10.68.2.240/status
{"msg":"ok"}

# 指定后端转发服务的svc地址，发个post请求看看服务是否正常
curl -X POST -H 'Content-type: application/json' -d '{"name": "boge","titlea": "'"$(id)"'", "texta": "'"$(whoami)-$(hostname)"'"}' 10.68.2.240/b01bdc063/boge/getjson

# /getjson接口接收完整的报警数据

6# kubectl -n monitoring logs alertmanaer-dingtalk-dp-89cfd9cd6-n57dh
[GIN-debug] [WARNING] Creating an Engine instance with the Logger and Recovery middleware already attached.

[GIN-debug] [WARNING] Running in "debug" mode. Switch to "release" mode in production.
 - using env:   export GIN_MODE=release
 - using code:  gin.SetMode(gin.ReleaseMode)

[GIN-debug] GET    /status                   --> mycli/libs.MyWebServer.func1 (3 handlers)
[GIN-debug] POST   /b01bdc063/boge/getjson   --> mycli/libs.MyWebServer.func2 (3 handlers)
[GIN-debug] POST   /7332f19/prometheus/dingtalk --> mycli/libs.MyWebServer.func3 (3 handlers)
[GIN-debug] POST   /1bdc0637/prometheus/feishu --> mycli/libs.MyWebServer.func4 (3 handlers)
[GIN-debug] POST   /5e00fc1a/prometheus/weixin --> mycli/libs.MyWebServer.func5 (3 handlers)
[GIN-debug] Listening and serving HTTP on :9999
[GIN] 2024/06/29 - 17:20:01 | 200 |      38.382µs |   172.20.84.128 | GET      "/status"
{"name": "boge","titlea": "uid=0(root) gid=0(root) groups=0(root)", "texta": "root-node-1"}
[GIN] 2024/06/29 - 17:21:55 | 200 |     109.414µs |   172.20.84.128 | POST     "/b01bdc063/boge/getjson"

id 命令是 Linux 和类 Unix 操作系统中的一个常用命令行工具，用于显示当前用户或指定用户的用户 ID（UID）、组 ID（GID）以及它们所属的用户组信息。这个命令对于理解用户和进程的权限非常有用。

查看后端 转发服务日志

# kubectl -n monitoring logs alertmanaer-dingtalk-dp-64c966fb9b-8pxgr
[GIN-debug] [WARNING] Creating an Engine instance with the Logger and Recovery middleware already attached.

[GIN-debug] [WARNING] Running in "debug" mode. Switch to "release" mode in production.
 - using env:   export GIN_MODE=release
 - using code:  gin.SetMode(gin.ReleaseMode)

[GIN-debug] GET    /status                   --> mycli/libs.MyWebServer.func1 (3 handlers)
[GIN-debug] POST   /b01bdc063/boge/getjson   --> mycli/libs.MyWebServer.func2 (3 handlers)
[GIN-debug] POST   /7332f19/prometheus/dingtalk --> mycli/libs.MyWebServer.func3 (3 handlers)
[GIN-debug] POST   /1bdc0637/prometheus/feishu --> mycli/libs.MyWebServer.func4 (3 handlers)
[GIN-debug] POST   /5e00fc1a/prometheus/weixin --> mycli/libs.MyWebServer.func5 (3 handlers)
[GIN-debug] Listening and serving HTTP on :9999
{"name": "boge","titlea": "uid=0(root) gid=0(root) groups=0(root)", "texta": "root-node-1"}
[GIN] 2024/01/15 - 21:45:15 | 200 |      36.143µs |   172.20.84.128 | POST     "/b01bdc063/boge/getjson"

/status --> 健康检测接口，但yaml没写 /b01bdc063/boge/getjson --> 获取未知原始json数据 /7332f19/prometheus/dingtalk --> 钉钉转发接口 在alertmanager.yaml替换 k8s pod alertmanaer-webhook.yaml替换label /1bdc0637/prometheus/feishu --> 飞书转发接口 /5e00fc1a/prometheus/weixin --> 微信转发接口

curl -X POST -H 'Content-type: application/json' -d '{"serviceA": "DeadMansSnitch","DeadMansSnitch": "'"$(id)"'", "texta": "'"$(whoami)-$(hostname)"'"}' 10.68.2.240/7332f19/prometheus/dingtalk
过滤前
 []
过滤后
 []
过滤字符串是：  serviceA,DeadMansSnitch
[GIN] 2024/06/29 - 17:33:03 | 200 |     127.083µs |   172.20.84.128 | POST     "/7332f19/prometheus/dingtalk"
kubectl -n monitoring exec -it alertmanaer-dingtalk-dp-89cfd9cd6-n57dh -- sh

首先看下报警规则及报警发送配置是什么样的

prometheus-operator的规则非常齐全，基本属于开箱即用类型，大家可以根据日常收到的报警，对里面的rules报警规则作针对性的调整，比如把报警观察时长缩短一点等

# 监控报警规划修改
kubectl -n monitoring edit PrometheusRule kubernetes-monitoring-rules
# 通过这里可以获取需要创建的报警配置secret名称
# kubectl -n monitoring edit statefulsets.apps alertmanager-main
...
      volumes:
      - name: config-volume
        secret:
          defaultMode: 420
          secretName: alertmanager-main-generated
...

# 注意事先在配置文件 alertmanager.yaml 里面编辑好收件人等信息 ，再执行下面的命令
kubectl -n monitoring delete secret alertmanager-main
kubectl -n monitoring create secret generic alertmanager-main --from-file=alertmanager.yaml

kubectl rollout restart statefulset/alertmanager-main -n monitoring

kubectl -n monitoring rollout restart statefulset/prometheus-k8s

报警配置文件 alertmanager.yaml

# global块配置下的配置选项在本配置文件内的所有配置项下可见
global:
  # 在Alertmanager内管理的每一条告警均有两种状态: "resolved"或者"firing". 在altermanager首次发送告警通知后, 该告警会一直处于firing状态,设置resolve_timeout可以指定处于firing状态的告警间隔多长时间会被设置为resolved状态, 在设置为resolved状态的告警后,altermanager不会再发送firing的告警通知.如果想报警一出来就推送就把时间设置小
#  resolve_timeout: 1h
  resolve_timeout: 10m

  # 告警通知模板
templates:
- '/etc/altermanager/config/*.tmpl'

# route: 根路由,该模块用于该根路由下的节点及子路由routes的定义. 子树节点如果不对相关配置进行配置，则默认会从父路由树继承该配置选项。每一条告警都要进入route，即要求配置选项group_by的值能够匹配到每一条告警的至少一个labelkey(即通过POST请求向altermanager服务接口所发送告警的labels项所携带的<labelname>)，告警进入到route后，将会根据子路由routes节点中的配置项match_re或者match来确定能进入该子路由节点的告警(由在match_re或者match下配置的labelkey: labelvalue是否为告警labels的子集决定，是的话则会进入该子路由节点，否则不能接收进入该子路由节点).
route:
  # 例如所有labelkey:labelvalue含cluster=A及altertname=LatencyHigh labelkey的告警都会被归入单一组中
  group_by: ['job', 'altername', 'cluster', 'service','severity']
  # 若一组新的告警产生，则会等group_wait后再发送通知，该功能主要用于当告警在很短时间内接连产生时，在group_wait内合并为单一的告警后再发送
#  group_wait: 30s
  group_wait: 10s
  # 再次告警时间间隔
#  group_interval: 5m
  group_interval: 20s
  # 如果一条告警通知已成功发送，且在间隔repeat_interval后，该告警仍然未被设置为resolved，则会再次发送该告警通知
#  repeat_interval: 12h
  repeat_interval: 1m
  # 默认告警通知接收者，凡未被匹配进入各子路由节点的告警均被发送到此接收者
  receiver: 'webhook'
  # 上述route的配置会被传递给子路由节点，子路由节点进行重新配置才会被覆盖

  # 子路由树
  routes:
  # 该配置选项使用正则表达式来匹配告警的labels，以确定能否进入该子路由树
  # match_re和match均用于匹配labelkey为service,labelvalue分别为指定值的告警，被匹配到的告警会将通知发送到对应的receiver
  - match_re:
      service: ^(foo1|foo2|baz)$
    receiver: 'webhook'
    # 在带有service标签的告警同时有severity标签时，他可以有自己的子路由，同时具有severity != critical的告警则被发送给接收者team-ops-wechat,对severity == critical的告警则被发送到对应的接收者即team-ops-pager
    routes:
    - match:
        severity: critical
      receiver: 'webhook'
  # 比如关于数据库服务的告警，如果子路由没有匹配到相应的owner标签，则都默认由team-DB-pager接收
  - match:
      service: database
    receiver: 'webhook'
  # 我们也可以先根据标签service:database将数据库服务告警过滤出来，然后进一步将所有同时带labelkey为database
  - match:
      severity: critical
    receiver: 'webhook'
# 抑制规则，当出现critical告警时 忽略warning
inhibit_rules:
- source_match:
    severity: 'critical'
  target_match:
    severity: 'warning'
  # Apply inhibition if the alertname is the same.
  #   equal: ['alertname', 'cluster', 'service']
  #
# 收件人配置
receivers:
- name: 'webhook'
  webhook_configs:
  - url: 'http://alertmanaer-dingtalk-svc.monitoring/b01bdc063/boge/getjson'
    send_resolved: true

/7332f19/prometheus/dingtalk

这里http://alertmanaer-dingtalk-svc.monitoring/b01bdc063/boge/getjson'是测试报警，可以看prometheusshiba

附： 监控其他服务的prometheus规则配置

https://github.com/samber/awesome-prometheus-alerts

getjson能接收到

告警通知模板templates:/etc/altermanager/config/*.tmpl，进到alertmanaer-dingtalk-dp的pod里面发现根本没有
