第29关 Kube-eventer秒级事件监控

阿里云开源的k8s容器秒级事件监控软件-Kube-eventer

这节课给大家分享一款K8S上宝藏级秒级事件监控报警的开源软件kube-eventer，它是由阿里云开源的，并且难得的还一直有在更新。

介绍

天下武功，唯快不破。对于报警监控也是一样，我们前面的课程有讲到prometheus这款监控软件，但总还觉得缺了些什么，对了，就是K8S上面无处不在的事件监控，博哥在实际的生产工作中，切身体会到事件监控的重要性，对于事件监控的使用力度更有超过prometheus，能及时灵敏地发现全球各个K8S集群的重要事件报警，使问题能得到及时的处理，维护了K8S集群的稳定性。

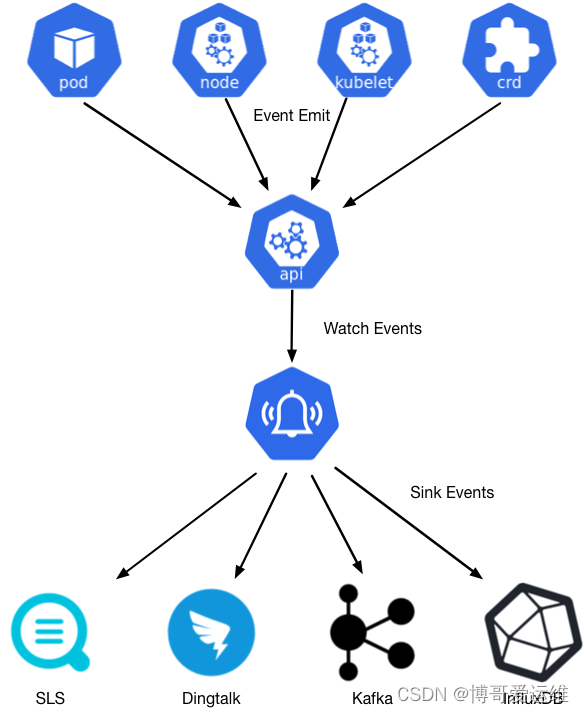

监控describe里的事件Events

在全球n个k8s集群，可以不用prometheus，但是不能没有kube-eventer，不监控起来没有底气，不知道发生什么 生产中 prometheus看历史数据多一点，95%报警由kube-eventer发出

下面是kube-eventer的github开源地址：

https://github.com/AliyunContainerService/kube-eventer

部署

下面是博哥生产中实际在用的完整yaml配置

api地址 grep boge.com /etc/kubeasz/clusters/test-cn/config.yml

---
apiVersion: v1
data:
  content: >-
    {"EventType": "{{ .Type }}","EventNamespace": "{{
    .InvolvedObject.Namespace }}","EventKind": "{{ .InvolvedObject.Kind }}","EventObject": "{{
    .InvolvedObject.Name }}","EventReason": "{{
    .Reason }}","EventTime": "{{ .LastTimestamp }}","EventMessage": "{{ .Message
    }}"}
kind: ConfigMap
metadata:
  name: kubeeventer-webhook
  namespace: kube-system



---
apiVersion: apps/v1
kind: Deployment
metadata:
  labels:
    name: kube-eventer
  name: kube-eventer-webhook
  namespace: kube-system
spec:
  replicas: 1
  selector:
    matchLabels:
      app: kube-eventer
  template:
    metadata:
      labels:
        app: kube-eventer
      annotations:
        scheduler.alpha.kubernetes.io/critical-pod: ''
    spec:
      dnsPolicy: ClusterFirstWithHostNet
      serviceAccount: kube-eventer
      containers:
        - image: registry.aliyuncs.com/acs/kube-eventer:v1.2.7-ca03be0-aliyun
#        - image: registry.us-west-1.aliyuncs.com/acs/kube-eventer:v1.2.7-ca03be0-aliyun
          name: kube-eventer
          command:
            - "/kube-eventer"
            # api server地址
            - "--source=kubernetes:https://test-cnk8s.boge.com:6443"
            ## .e.g,dingtalk sink demo
            #- --sink=dingtalk:[your_webhook_url]&label=[your_cluster_id]&level=[Normal or Warning(default)]&namespaces=[kube-system,kae-app(all)]
            - --sink=webhook:http://alertmanaer-dingtalk-svc.kube-system/b01bdc063/boge/getjson?level=Warning&kinds=Pod&method=POST&header=Content-Type=application/json&custom_body_configmap=kubeeventer-webhook&custom_body_configmap_namespace=kube-system

          env:
          # If TZ is assigned, set the TZ value as the time zone
          - name: TZ
            value: "Asia/Shanghai"
          volumeMounts:
            - name: localtime
              mountPath: /etc/localtime
              readOnly: true
            - name: zoneinfo
              mountPath: /usr/share/zoneinfo
              readOnly: true
          resources:
            requests:
              cpu: 100m
              memory: 100Mi
            limits:
              cpu: 500m
              memory: 250Mi
      hostAliases:
      - hostnames:
        - test-cnk8s.boge.com
        ip: 10.0.1.201
      volumes:
        - name: localtime
          hostPath:
            path: /etc/localtime
        - name: zoneinfo
          hostPath:
            path: /usr/share/zoneinfo
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  name: kube-eventer
rules:
  - apiGroups:
      - ""
    resources:
      - configmaps
      - events
    verbs:
      - get
      - list
      - watch
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: kube-eventer
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: kube-eventer
subjects:
  - kind: ServiceAccount
    name: kube-eventer
    namespace: kube-system
---
apiVersion: v1
kind: ServiceAccount
metadata:
  name: kube-eventer
  namespace: kube-system

注意使用密钥签名的话钉钉webhook地址要dingtalk开头，这样才能让服务适配上

--sink=dingtalk:https://oapi.dingtalk.com/robot/send?access_token=xxxxxxxxxxxxx&sign=SECxxxxxxxxxxxxxxxxxxxxxxx&level=Warning&kinds=Pod&method=POST&header=Content-Type=application/json&custom_body_configmap=kubeeventer-webhook&custom_body_configmap_namespace=kube-system

kubectl create ns test-kube-eventer

kubectl -n test-kube-eventer apply -f kube-eventer.yaml

kubectl -n test-kube-eventer delete -f kube-eventer.yaml

# kubectl -n test-kube-eventer get pod
NAME                                    READY   STATUS    RESTARTS   AGE
kube-eventer-webhook-76b97bd7b5-nnlsn   1/1     Running   0          107s

测试

kubectl create ns test

kubectl -n test apply -f test-kube-eventer-pod.yaml

kubectl -n test delete -f test-kube-eventer-pod.yaml

kubectl -n test get pod -w

kubectl -n test-kube-eventer logs kube-eventer-webhook-76b97bd7b5-nnlsn

apiVersion: v1
kind: Pod
metadata:
  name: test-pod
spec:
  containers:
  - name: tomcat-container
    image: tomcat:114514
    ports:
    - containerPort: 8080
    command: ["/bin/bash", "-c", "while true; do sleep 30; done"] # 这里添加了空任务，仅作示例，实际中Tomcat自身会保持容器运行
    lifecycle:
      postStart:
        exec:
          command: ["sh", "-c", "echo 'Pod has been started.'"] # 可选，Pod启动后执行的命令
    readinessProbe: # 就绪探针，确保Tomcat服务正常
      httpGet:
        path: /manager/html # 假设Tomcat管理页面作为健康检查
        port: 8080
      initialDelaySeconds: 5
      periodSeconds: 5
    livenessProbe: # 活跃性探针，防止Pod假死
      httpGet:
        path: /manager/html
        port: 8080
      initialDelaySeconds: 15
      periodSeconds: 20

#- --sink=dingtalk:[your_webhook_url]&label=[your_cluster_id]&level=[Normal or Warning(default)]&namespaces=[kube-system,kae-app(all)]
- --sink=webhook:http://alertmanaer-dingtalk-svc.kube-system/b01bdc063/boge/getjson?level=Warning&kinds=Pod&method=POST&header=Content-Type=application/json&custom_body_configmap=kubeeventer-webhook&custom_body_configmap_namespace=kube-system
